Asimeto was founded in 2007 by renowned German metrologist Manfred Eisinger. Since then, the company has rapidly established a reputation for manufacturing high-performance precision tools and solutions and delivering them at unexpectedly affordable prices.
Asimeto continues to win market share by applying German metrological design, American technological innovation and Asian manufacturing competitiveness across a broad range of integrated precision solutions, distributed through a global network. Every tool is ISO17025 certified for dependable accuracy and to ensure calibration is compliant with the regulatory requirements of each local market. Increasingly, Asimeto is the choice of engineers the world over including companies like Volkswagen, Guhring and Boeing. We invite you to discover more.
Features:
Resolution: 0.00005" / 0.001mm
Accuracy: ± 0.008mm
Range: 0-1" / 0-25.4mm
Measurement system: Inch/Metric conversion
Protection Level: IP67
Auto-Off: Yes
Button function: On/Off, mm/inch, ABS, Zero, +/-, Preset, Tol, Data
Data Output: Bluetooth or USB Cable
Flat and Lug Back: Yes
Battery size: CR2032
Built in Bluetooth wireless transmission.
Inductive measurement system.
With preset value function, the initial value can be set arbitrarily.
Tolerance measurement feature allows for the upper and lower tolerance for maximum and minimum.
Meets ASME Inspections Standards.
Bluetooth Wireless Data Output Instructions:
1. Press and hold the data button on the dial indicator for 3 seconds. A wireless symbol will appear on the left side of the screen.
2. On the device you wish to pair with, enable Bluetooth. The dial indicator will appear as 'Keyboard' in the list of available devices.
3. Open a spreadsheet on your device, then press the data button on the dial indicator to begin outputting data.

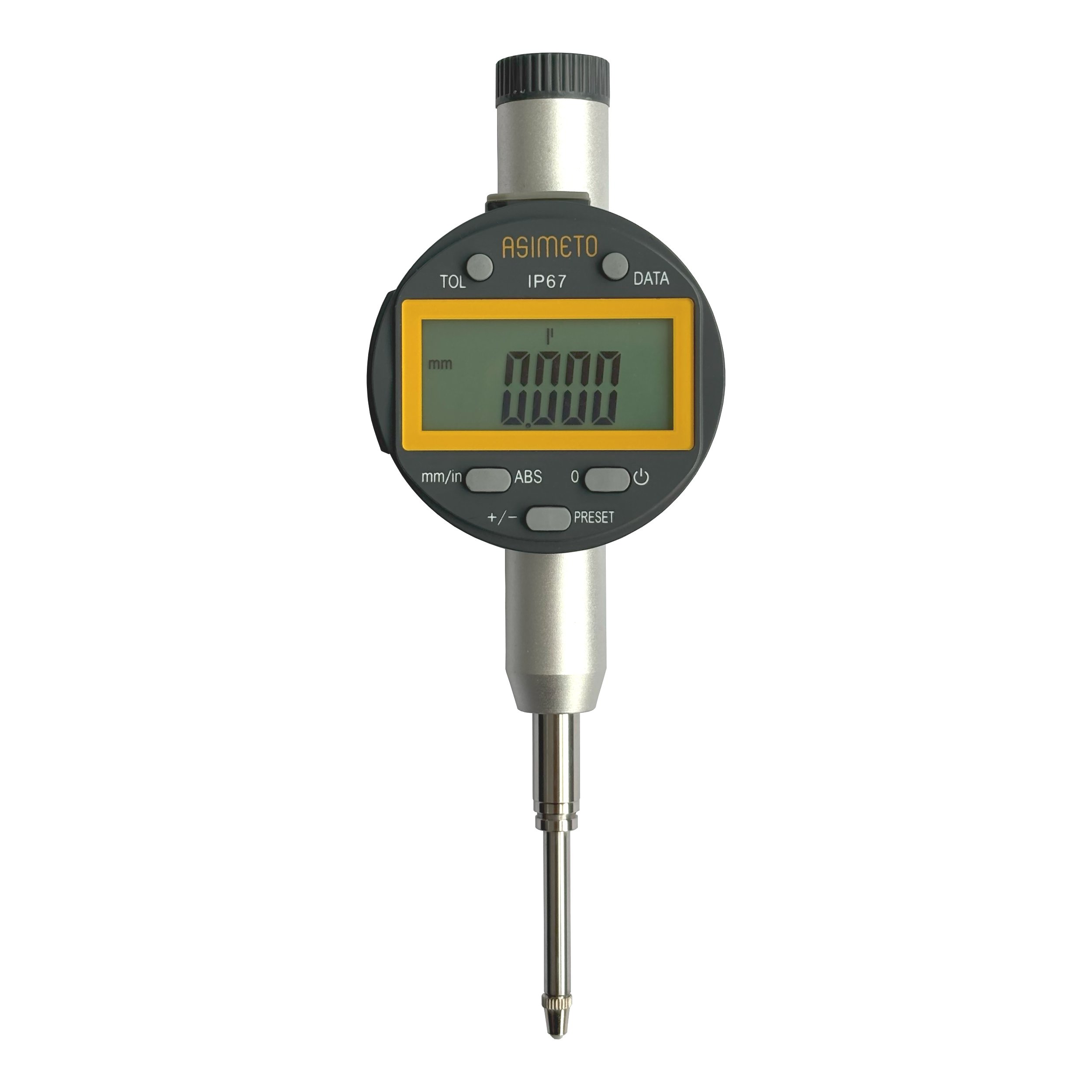

Model #: 408-02-8
