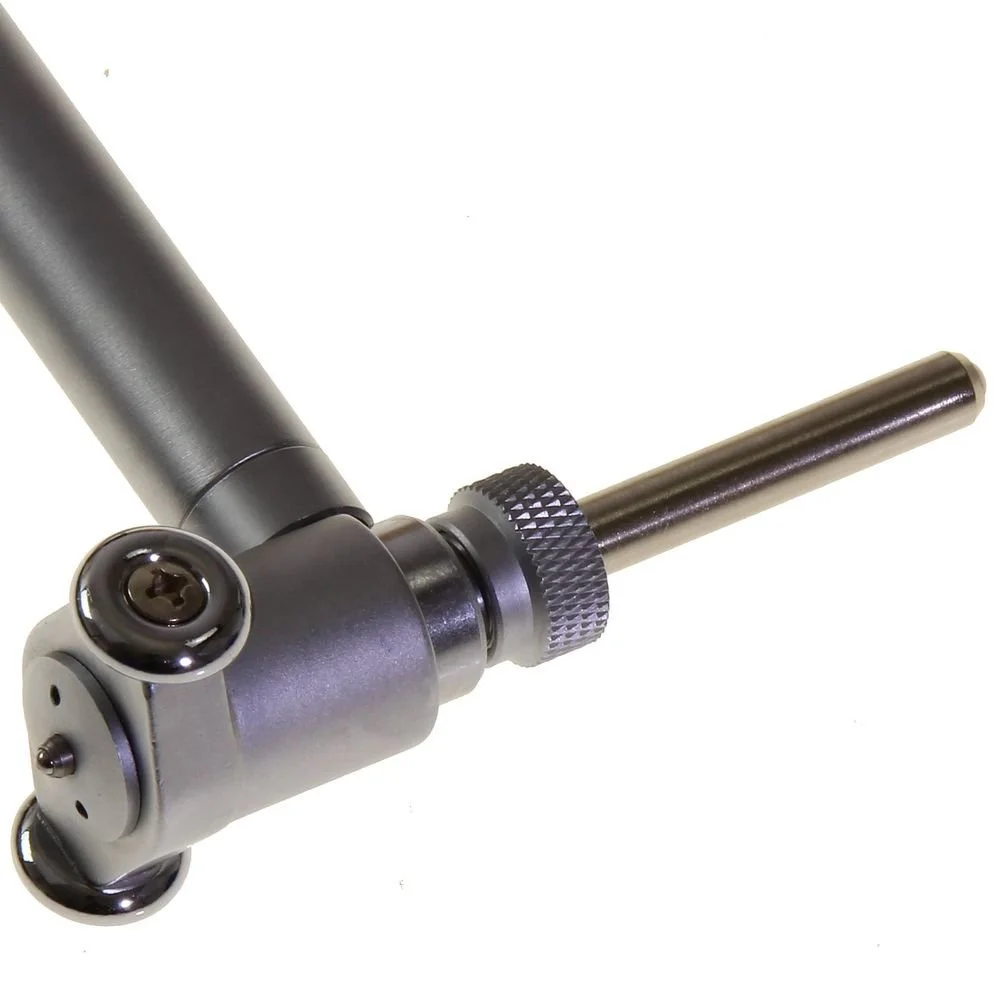

iGAGING ABSOLUTE Digital Internal Bore Gauge Extended Range Set 0.7-6" / 18-150mm Range | 0.001mm Resolution

iGAGING ABSOLUTE Digital Bore Gauge Extended Range Set 0.7-6" / 18-150mm 0.001mm

Measure these ranges with this set:

• 0.7 - 1.5"

• 1.4 - 2"

• 2 - 6"

Set Includes:

• 3 interchangeable measuring heads: 0.7" - 1.5", 1.4" - 2" & 2" - 6"

• 3 sets of anvils with carbide points: (0.7, 0.8, 0.9, 1.0, 1.1, 1.2, 1.3, 1.4"),  (1.4, 1.6, 1.8, 2"), (2.0, 2.2, 2.4, 2.8, 3.0, 3.2, 3.4, 3.6, 3.8, 4")

• 2" extender

• 3 spacers/washers: 0.02, 0.05, 0.1"

• Supplied in protective case

Specifications:

• Measures bore to 10" deep

• Bore gauge measuring range: 0.7 - 6" / 18 - 150mm

• Bore gauge total error: 0.0006"

• Bore gauge self-centering error: 0.00025"

Digital Bore Gauge Indicator:

• Indicator face can be rotated up to 330°

• Absolute encoder technology

• Origin Setting

• Inch and Metric reading

• Preset and Min functions

• Change measure direction +/-

• Indicator range: 0 - 0.25" / 0 - 6.85mm

• Resolution: 0.00005" / 0.001mm

• Indicator Accuracy: 0.0003" / 0.008mm

• Indicator Repeatability: 0.00005" / 0.001mm

• 3/8" Diameter Shank

• 4-48 Thread Carbide Point

• IP54 Rated

• Battery: 3V CR2032 (included)

Item No.: 35-2868-i
