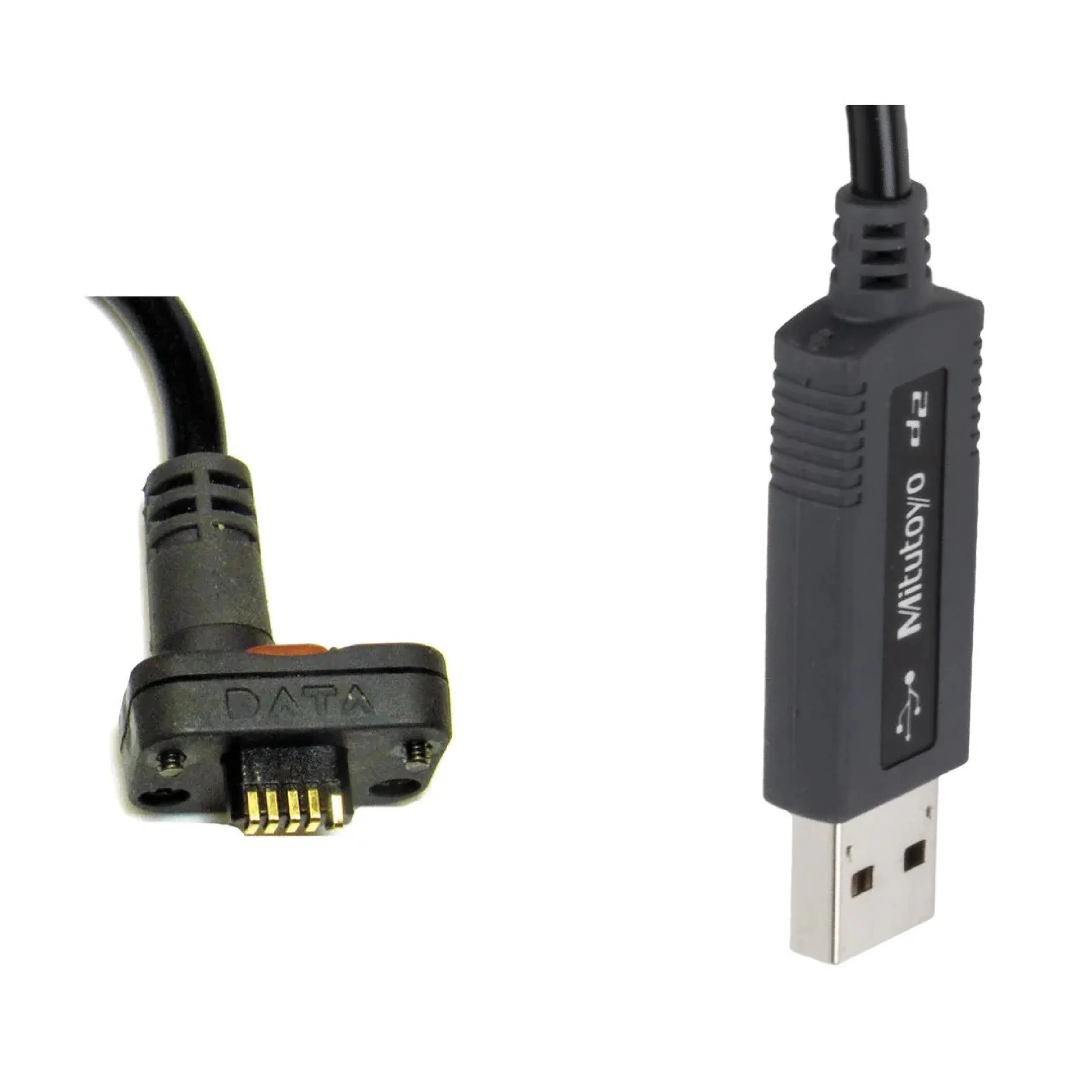

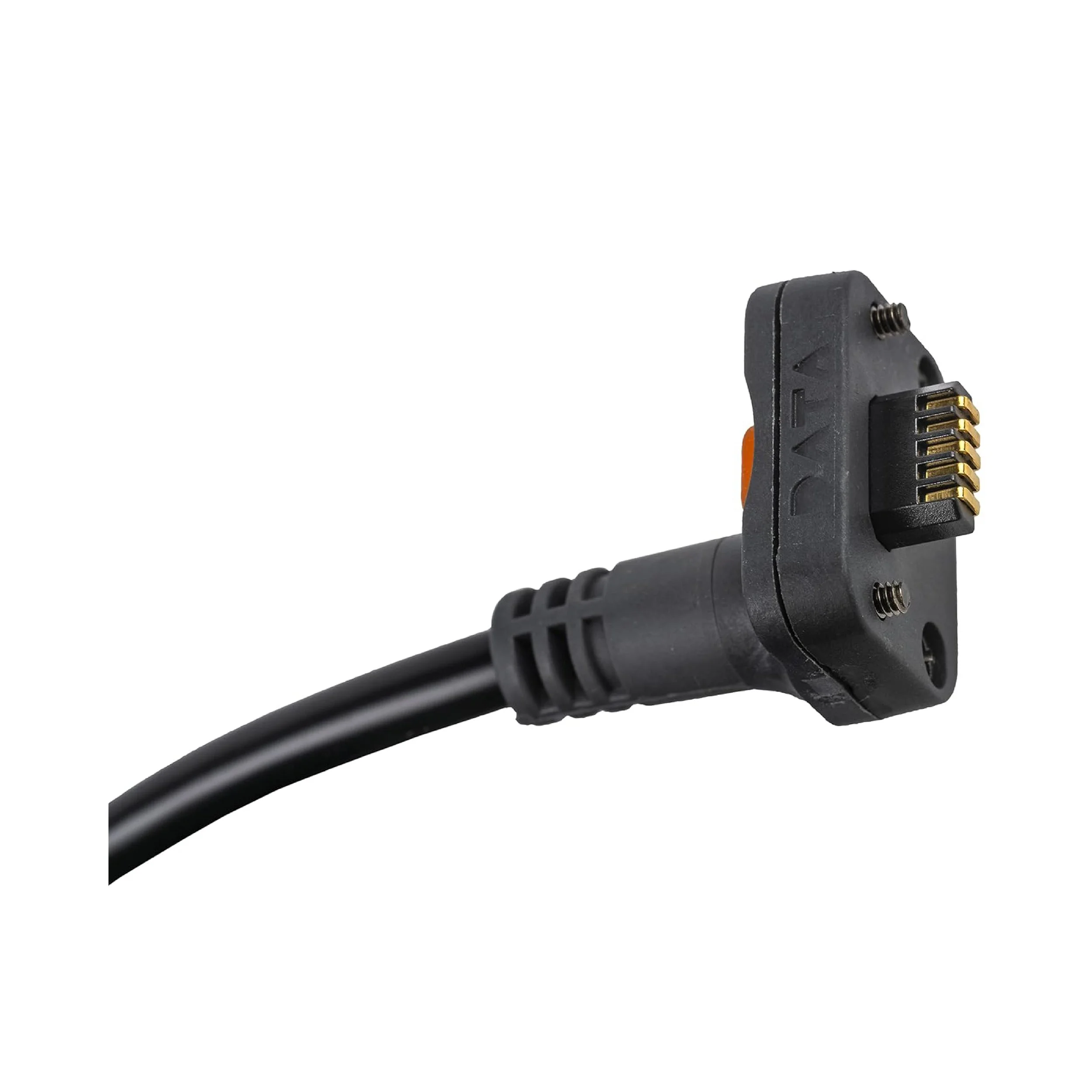

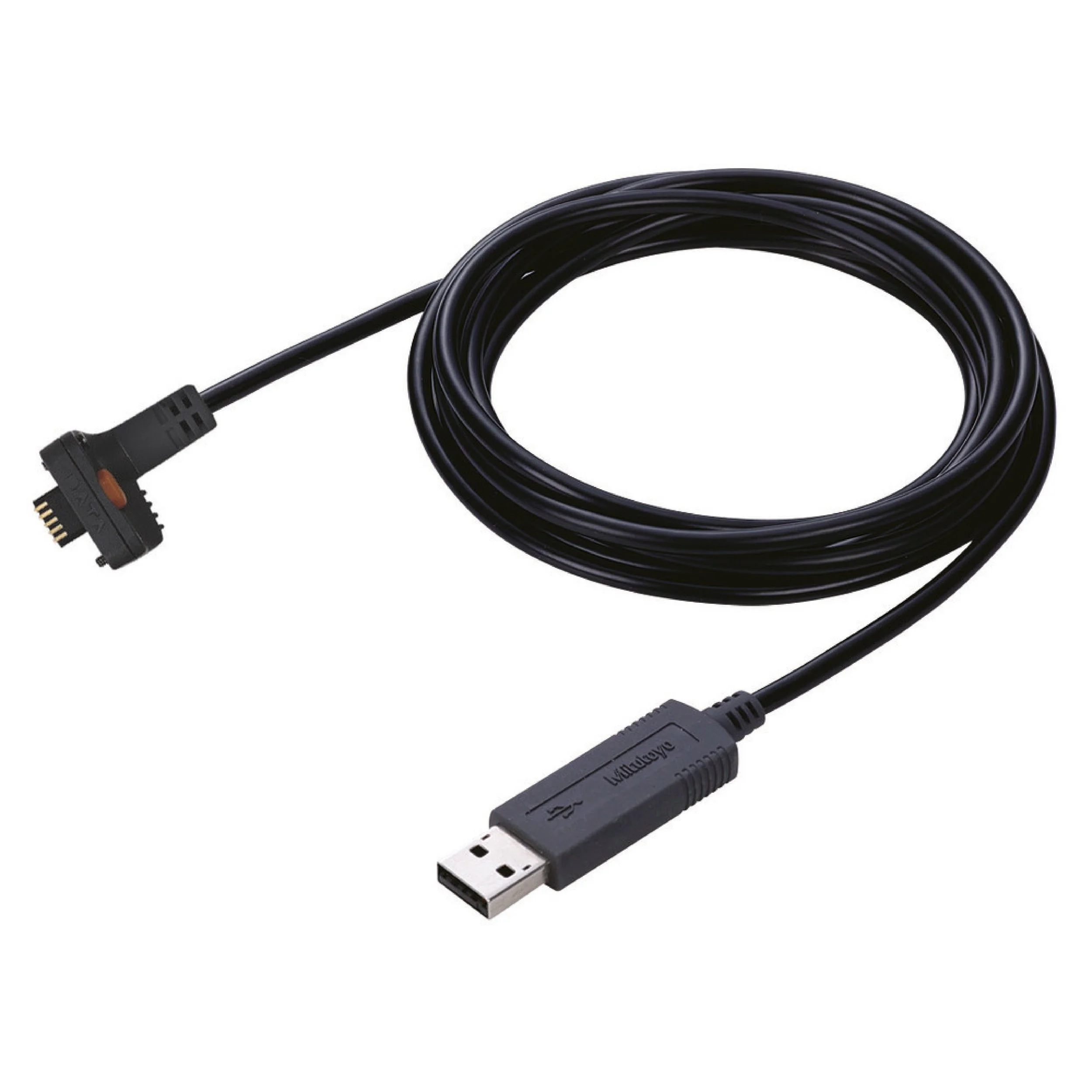

Mitutoyo 06AFM380A USB Input Tool Direct with SPC Data Output Button

Mitutoyo Digimatic USB Input Tool Direct with SPC Data Output Button

• Measurement data can be entered into Excel, Notepad, etc. simply by connecting to a PC.

• The combination of simple operability (HID) and optional software for Excel input enables one step higher work efficiency.

Technical Data:

Cable length: 2 m
Model: USB Input Tool Direct (Waterproof type with output switch)
Communication speed (Mbps): 12
Output specification: USB 2.0 or USB 1.0
USB 2.0 certified: Correspondence
Power supply: USB bus powered
Output: USB HID (keyboard format) or VCP (Virtual COM-Port)
Remarks: USB Input Tool Direct Cable Straight With Data Switch (2m), e.g. for IP67 Caliper
Software: Programs that allow keyboard input (Excel, Word, Notepad, etc.)
OS compatibility: Windows® 2000, XP, Vista, 7, 8/8.1, 10, 11
Max connectable devices: Up to 20
Mass: 59 g

Model Compatibility:

• Digimatic Coolant Proof Caliper: Series 500, 550, 551, 573

• Digimatic Coolant Proof Carbon Fiber Caliper: Series 552

• Digimatic Coolant Proof Depth Gauge: Series 571

*Since this device is compatible with Windows standard driver software, dedicated driver software is not required.*

Model #: 06AFM380A

MADE IN JAPAN
