Measurement data can be entered into Excel, Notepad, etc. simply by connecting to a PC.
The combination of simple operability (HID) and optional software for Excel input enables one step higher work efficiency.
Technical Data:
Cable length: 2 m
Model: Flat Straight Type
Communication speed (Mbps): 12
Output specification: USB (1 channel)
USB 2.0 certified: Correspondence
Power supply: USB bus power
Output: USB HID and VCP (with optional software USB-ITPAK)

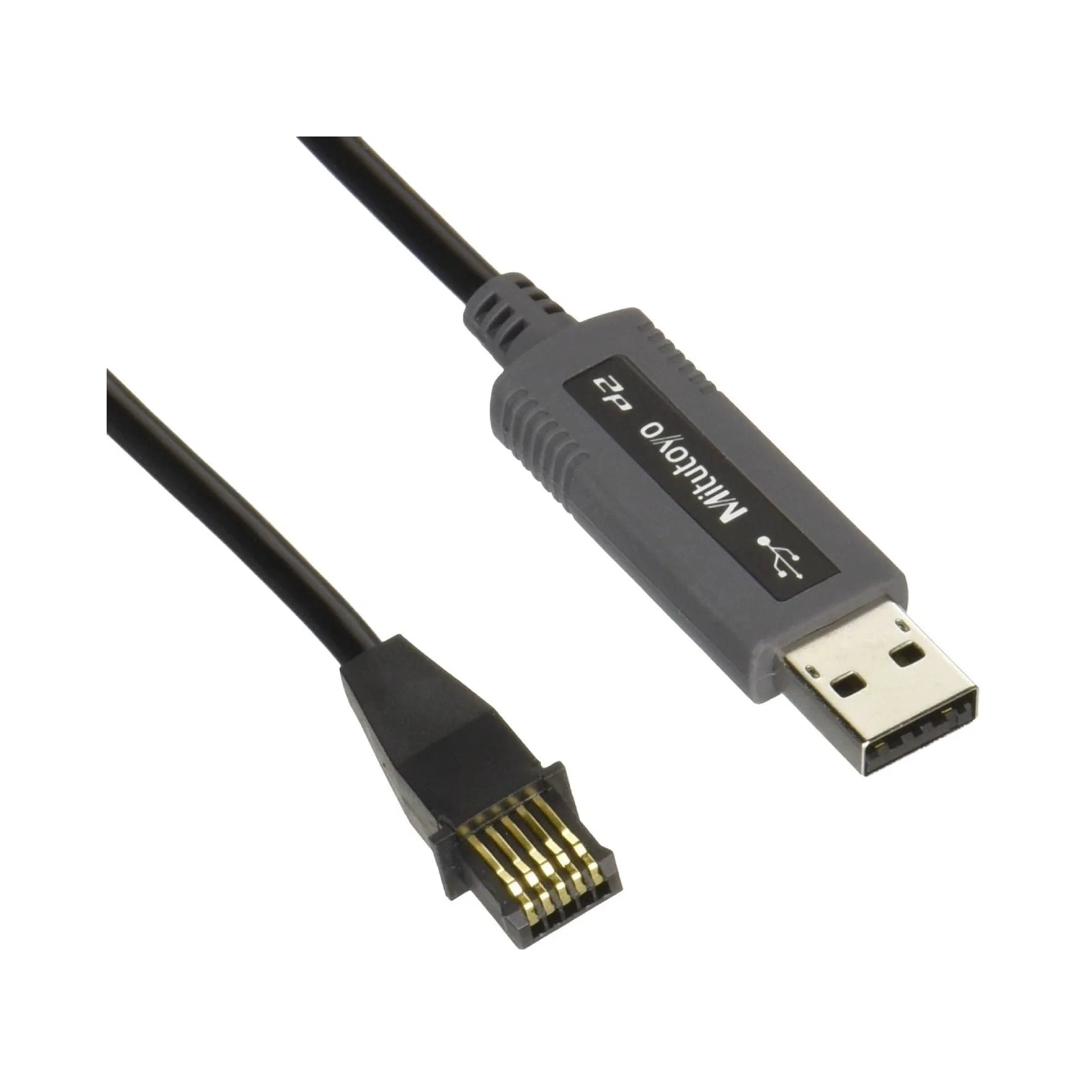

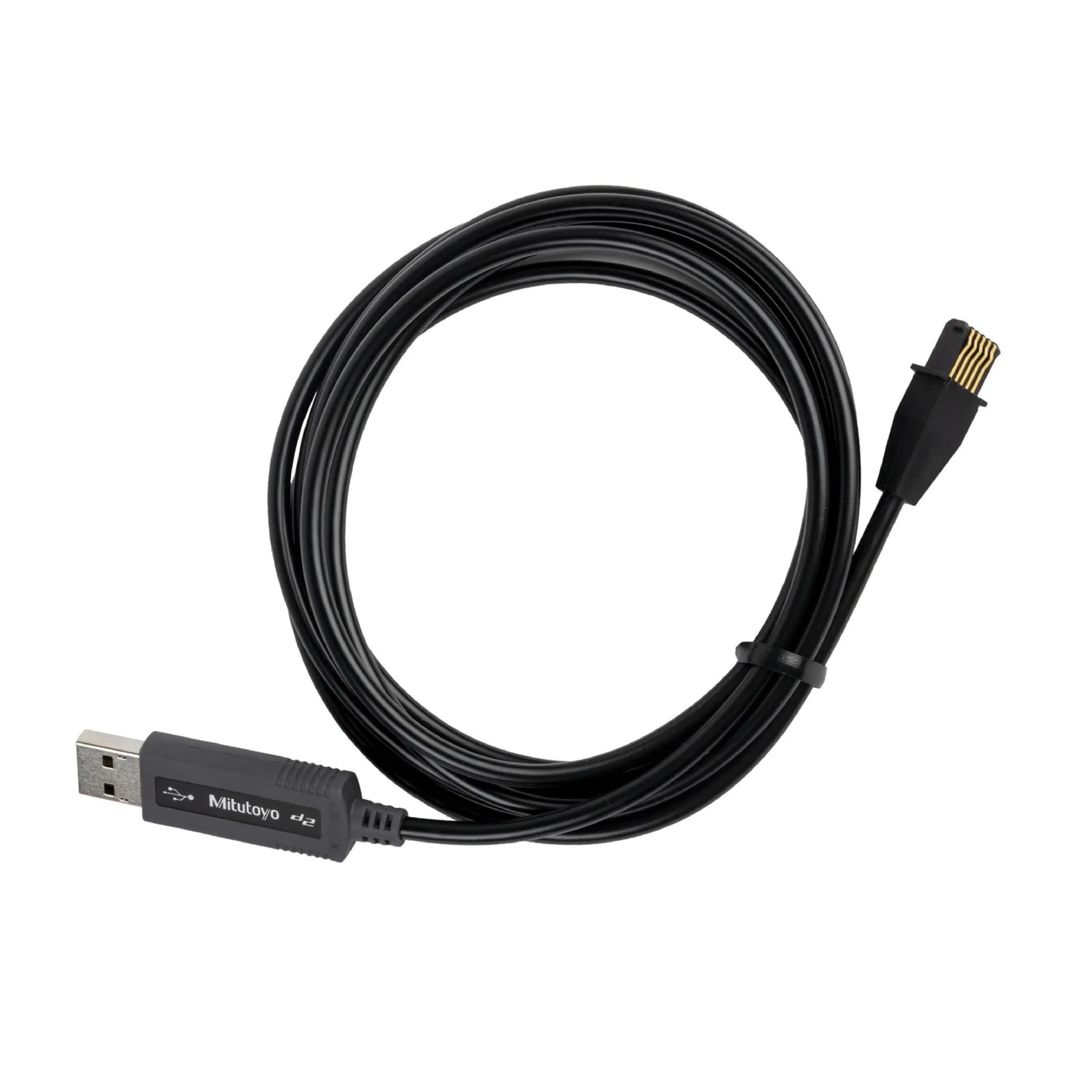

Remarks: USB Input Tool Direct Cable Straight (2m) e.g. for ID-S Indicator
OS compatibility: Windows® 2000, XP, Vista, 7, 8/8.1, 10, 11
Max connectable devices: 20 cables
Mass: 59 g
Model Compatibility:
Digimatic Height Gauge: Series 192, Series 570
Digimatic Indicator: Series 543, Series 575
Digimatic Bore Gauge: Series 568, Series 511
Note: This USB Input Tool Direct does not include a data push button. If your measuring gauge also lacks a data push button, you will need the USB-ITPAK V3.0/V2.1 software. This software is available for download from the official Mitutoyo website which can be found HERE.
Model #: 06AFM380F
MADE IN JAPAN
