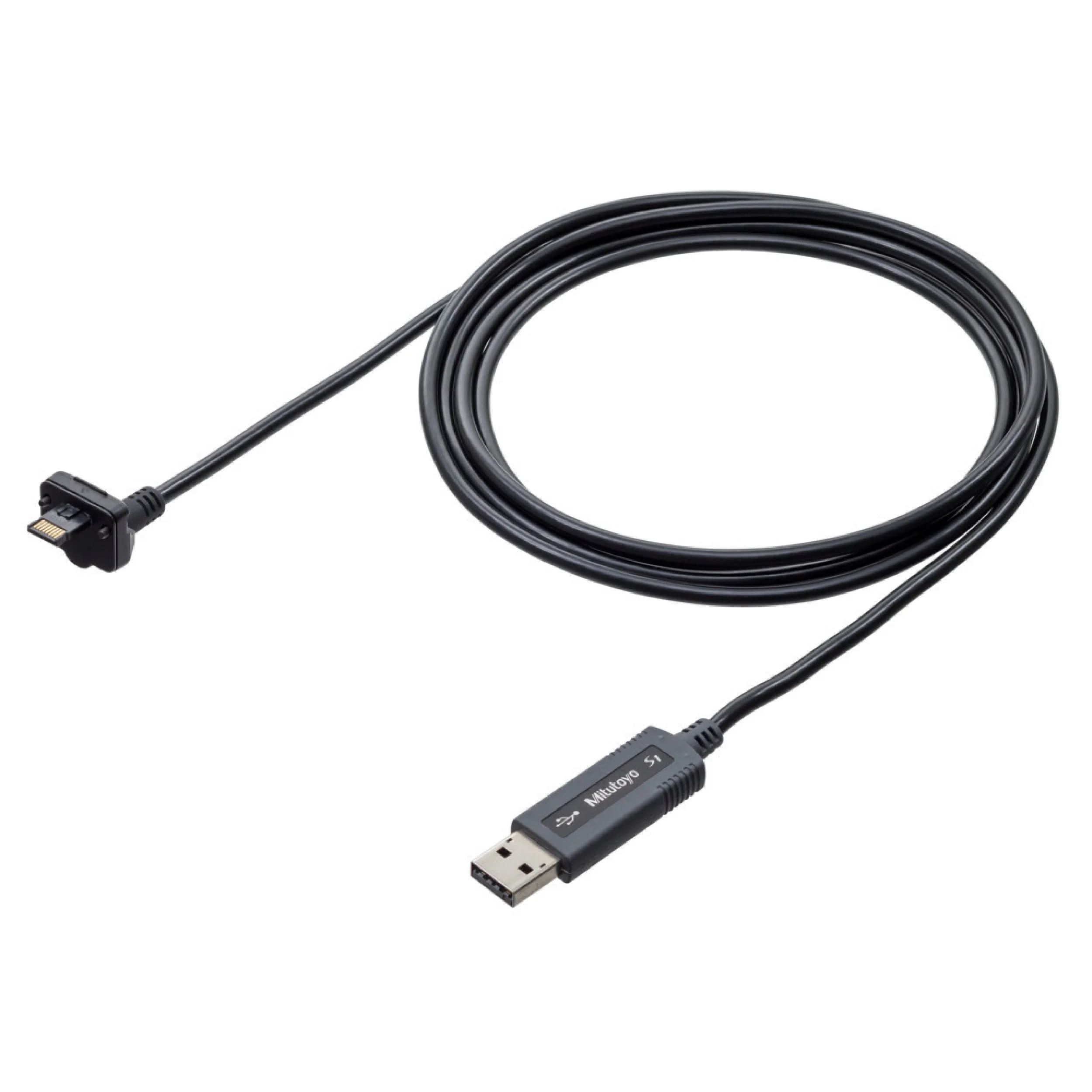

Mitutoyo 06AGQ001A USB Input Tool Direct with SPC Data Output Button

Mitutoyo Digimatic USB Input Tool Direct with SPC Data Output Button

• Measurement data can be entered into Excel, Notepad, etc. simply by connecting to a PC.

• The combination of simple operability (HID) and optional software for Excel input enables one step higher work efficiency.

Technical Data:

Cable length: 2 m
Model: USB Input Tool Direct (Straight waterproof type with output switch)
Communication speed (Mbps): 12
Output specification: USB (1 channel)
USB 2.0 certified: Correspondence
Power supply: USB bus power
Output: USB HID (keyboard format) or VCP (Virtual COM-Port)
Remarks: USB Input Tool Direct Cable for measuring tools with Digimatic S1 bidirectional interface
Software: Programs that allow keyboard input (Excel, Word, Notepad, etc.)
OS compatibility: Windows® 10 (64 bit) / Windows® 11 (64 bit)
Max connectable devices: Up to 20
Mass: 62 g

Model Compatibility:

• Digimatic Micrometer QuantuMike: 293-140-40, 293-141-40, 293-142-40, 293-143-40 / 293-180-40, 293-181-40, 293-182-40, 293-183-40.

*Since this device is compatible with Windows standard driver software, dedicated driver software is not required.*

Model #: 06AGQ001A

MADE IN JAPAN
