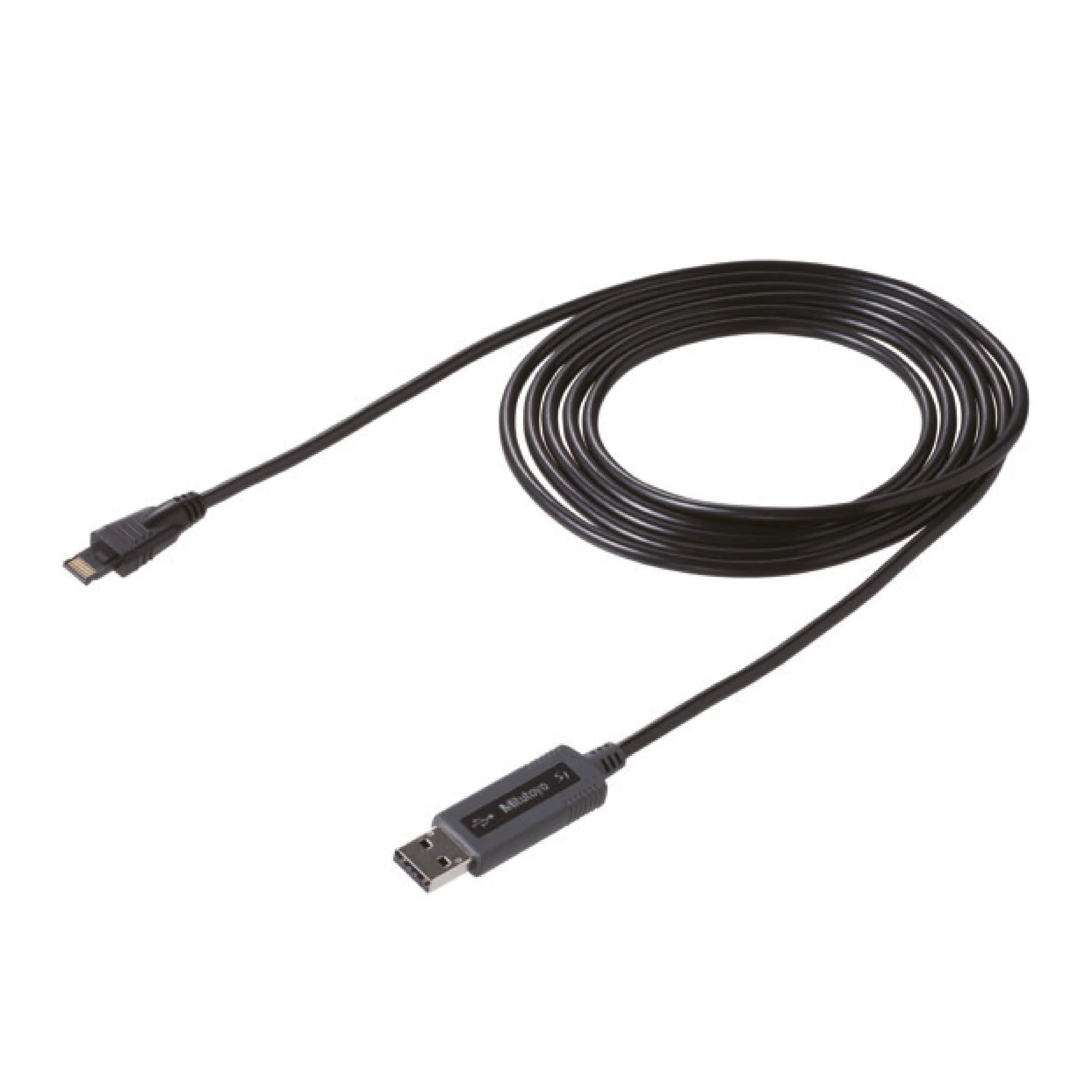

Mitutoyo 06AGQ001F USB Input Tool Direct

Mitutoyo Digimatic USB Input Tool Direct with SPC Data Output Button

• Measurement data can be entered into Excel, Notepad, etc. simply by connecting to a PC.

• The combination of simple operability (HID) and optional software for Excel input enables one step higher work efficiency.

Technical Data:

Cable length: 2 m
Model: USB Input Tool Direct (Straight standard type)
Communication speed (Mbps): 12
Output specification: USB (1 channel)
USB 2.0 certified: Correspondence
Power supply: USB bus power
Output: USB HID (keyboard format) or VCP (Virtual COM-Port)

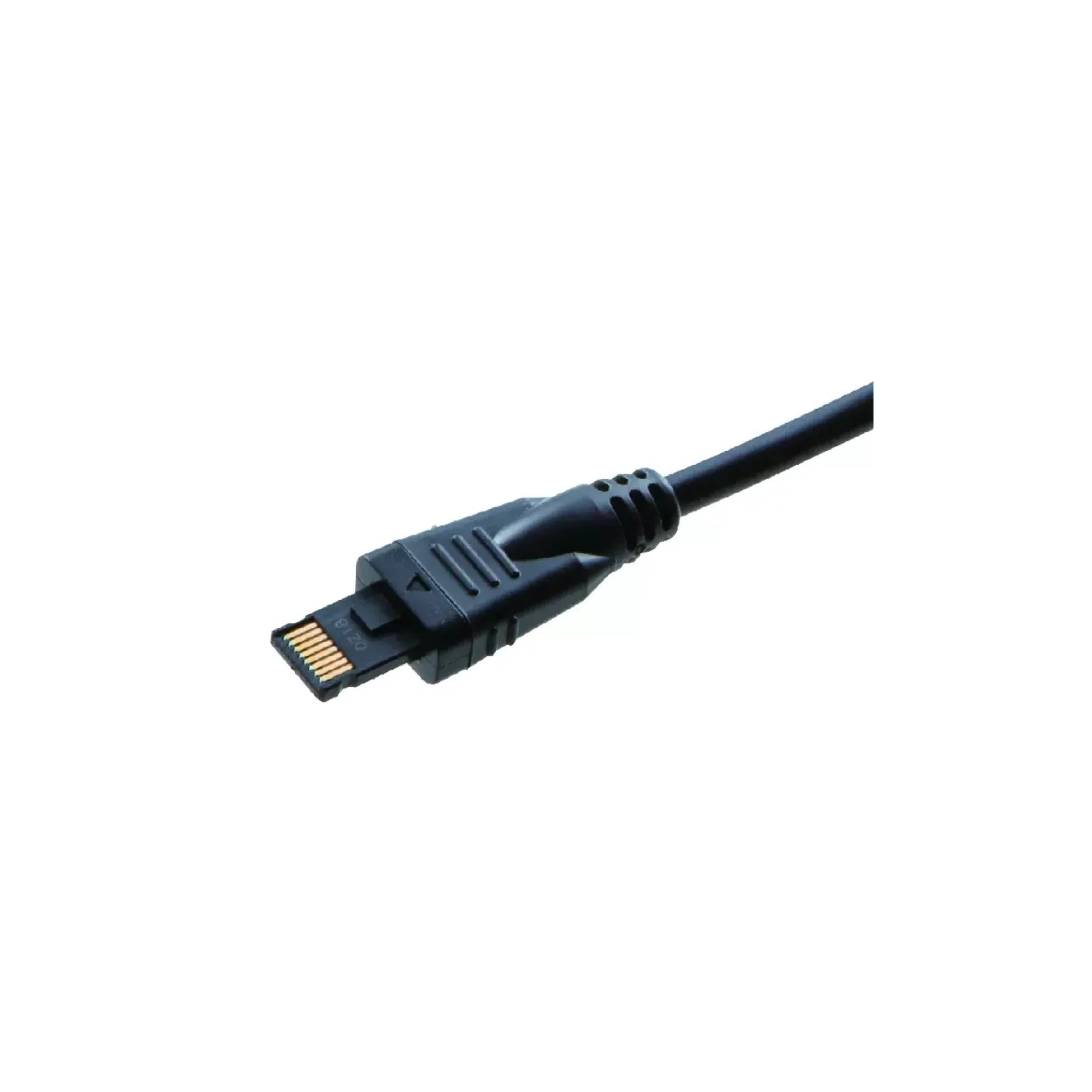

Remarks: USB Input Tool Direct Cable for measuring tools with Digimatic S1 bidirectional interface
Software: Programs that allow keyboard input (Excel, Word, Notepad, etc.)
OS compatibility: Windows® 10 (64 bit) / Windows® 11 (64 bit)
Max connectable devices: Up to 20
Mass: 62 g

Model Compatibility:

• Digimatic Linear Height: Series 518

• Digimatic Depth Gauge: Series 547

• Digimatic Indicator: Series 543

• Digimatic Thickness Gauge: Series 547, 7

*Since this device is compatible with Windows standard driver software, dedicated driver software is not required.*

Model #: 06AGQ001F

MADE IN JAPAN
