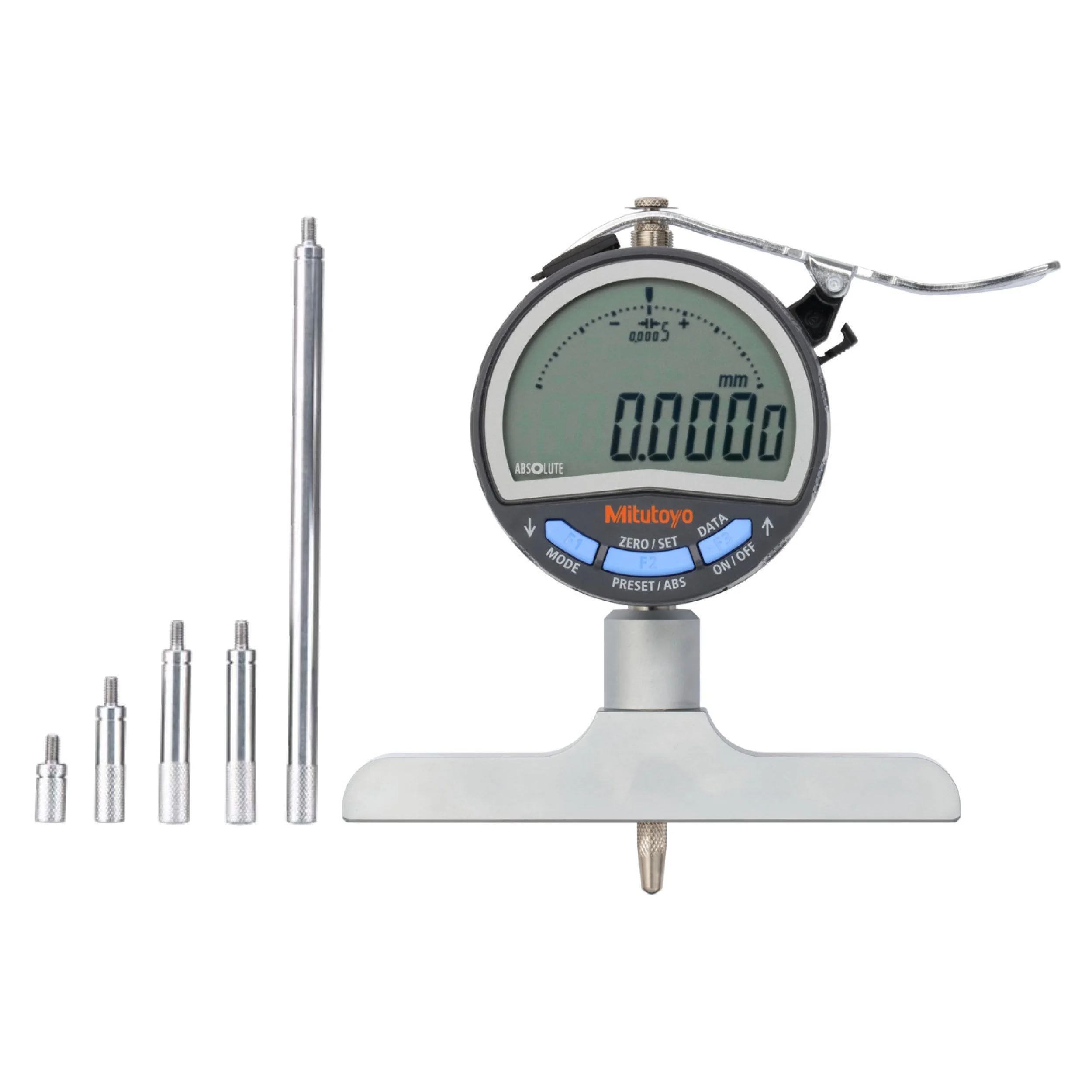

Mitutoyo 547-252A Digital Depth Gauge 0-200mm Range | 0.0005mm Resolution

ABSOLUTE Digimatic Depth Gauge SERIES 547

• Easy-to-read digital display effectively prevents misreading.
• An analog bar indicator on the LCD is convenient for observing subtle movements such as the approach to tolerance.

Specifications:
Digital/Analog: Digital
Inch-Metric: Metric
Range: 0 - 200 mm
Resolution (mm): 0.0005 / 0.001 / 0.01 (selectable)
Stroke: 12.7 mm
Accuracy: ±5
Measuring force (N): 1.5 or less
Base width: 101.6 mm
Base thickness: 16 mm
Base flatness: 2 μm

Functions:
• Peak detection (MAX/MIN)
• Runout range measurement (MAX - MIN)
• Zero-setting (INC system)
• Presetting (ABS system)
• Measuring direction switching
• Tolerance judgment
• Resolution switching
• Simple calculation: f(x) =Ax
• Function Lock
• Calibration schedule warning
• Auto power OFF
• Data output
• Display value holding (when no external device is connected)
• 330° rotary display
• Low battery/voltage alarm display
• Error alarm display

Model #: 547-252A

MADE IN JAPAN
