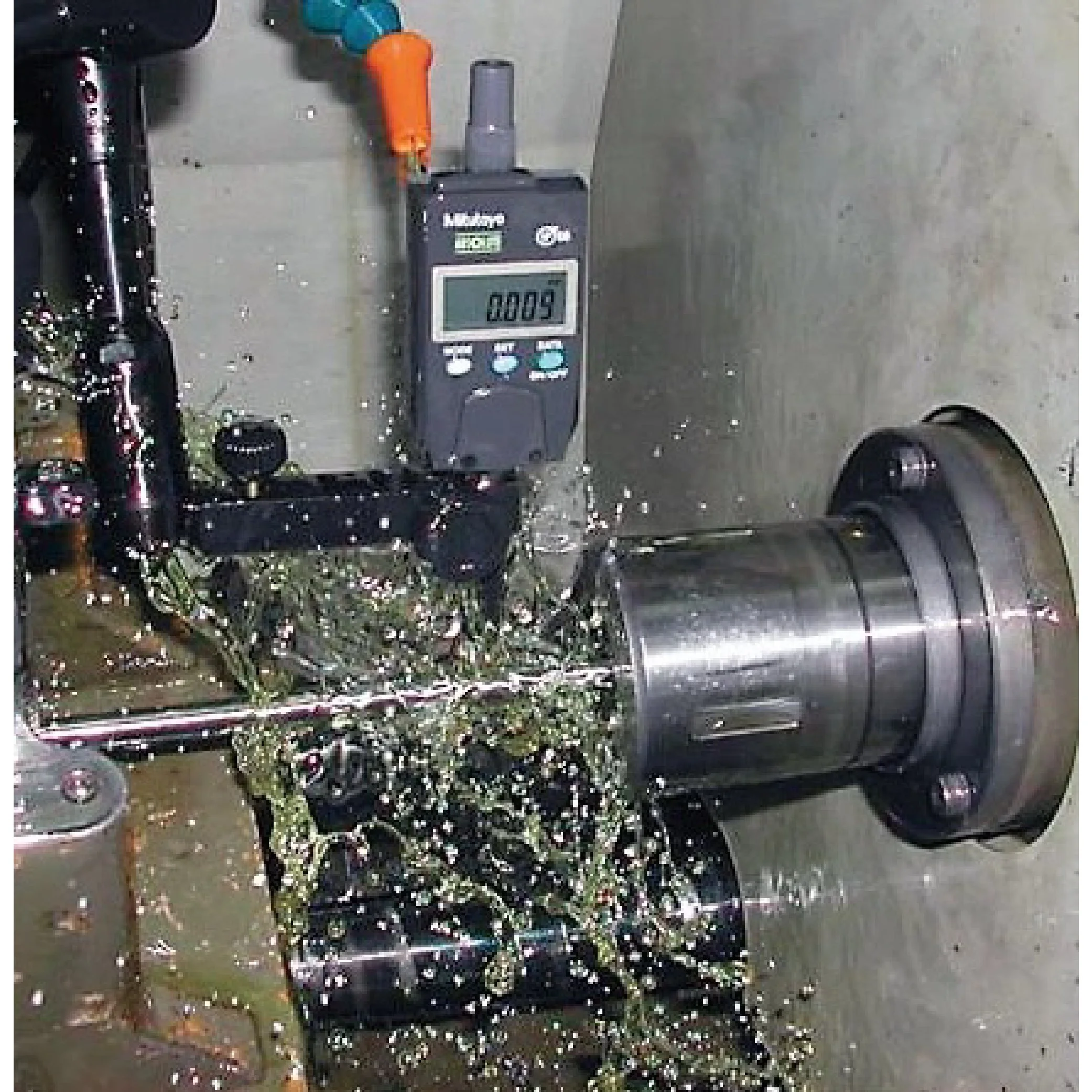

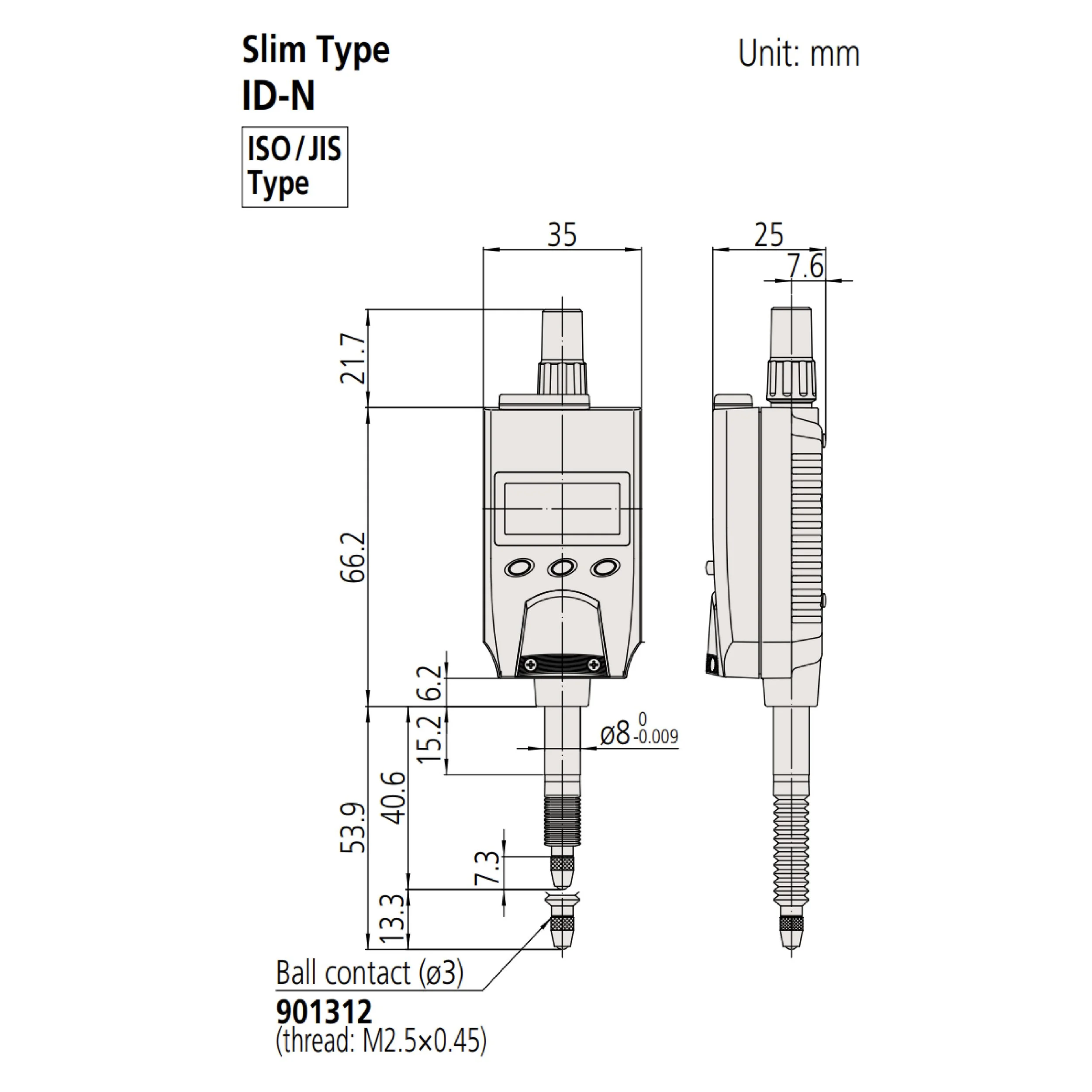

• Slim body design (body width: only 35 mm). Rated to IP66: Can be used confidently even in adverse environments.
• The ABS (ABSOLUTE) scale restores the last origin position automatically when the indicator is turned on, and realizes high reliability by eliminating over-speed errors.
• Tolerance judgment can be performed by setting upper and lower tolerance limits.
• Equipped with a data output port that enables incorporation into measurement networking and statistical process control systems.
Technical Data:
Digital/Analog: Digital
Inch-Metric: Metric
Range: 12.7 mm
Digital step: 0.01/0.001 mm (selectable)
Max. Permissible Error E MPE (Total Range): 0.01/0.003 mm
H MPE (Hysteresis): 0.002 mm
R MPE (Repeatability): 0.002 mm
Measuring force MPL: ≤2.5 N
Protection: IP66
Type: EN ISO Standard
Display: LCD, character height 6.2 mm
Max. response speed: Unlimited
Stem ∅: 8 mm
Contact point: Carbide ball, thread: M2.5x0.45
Power supply: 1 battery SR44
Battery life: Approx. 7000 hours
Digimatic data output: Yes
Digital Scale: Electrostatic capacitance type absolute linear encoder
Mass: 130 g
Functions:
• Zero-setting (INC system)
• Presetting (ABS system)
• Measuring direction switching
• Tolerance judgment
• Display readout reversal
• Resolution switching
• Data output
• Display value holding (when no external device is connected)
• Low battery voltage alarm display
• Error alarm display

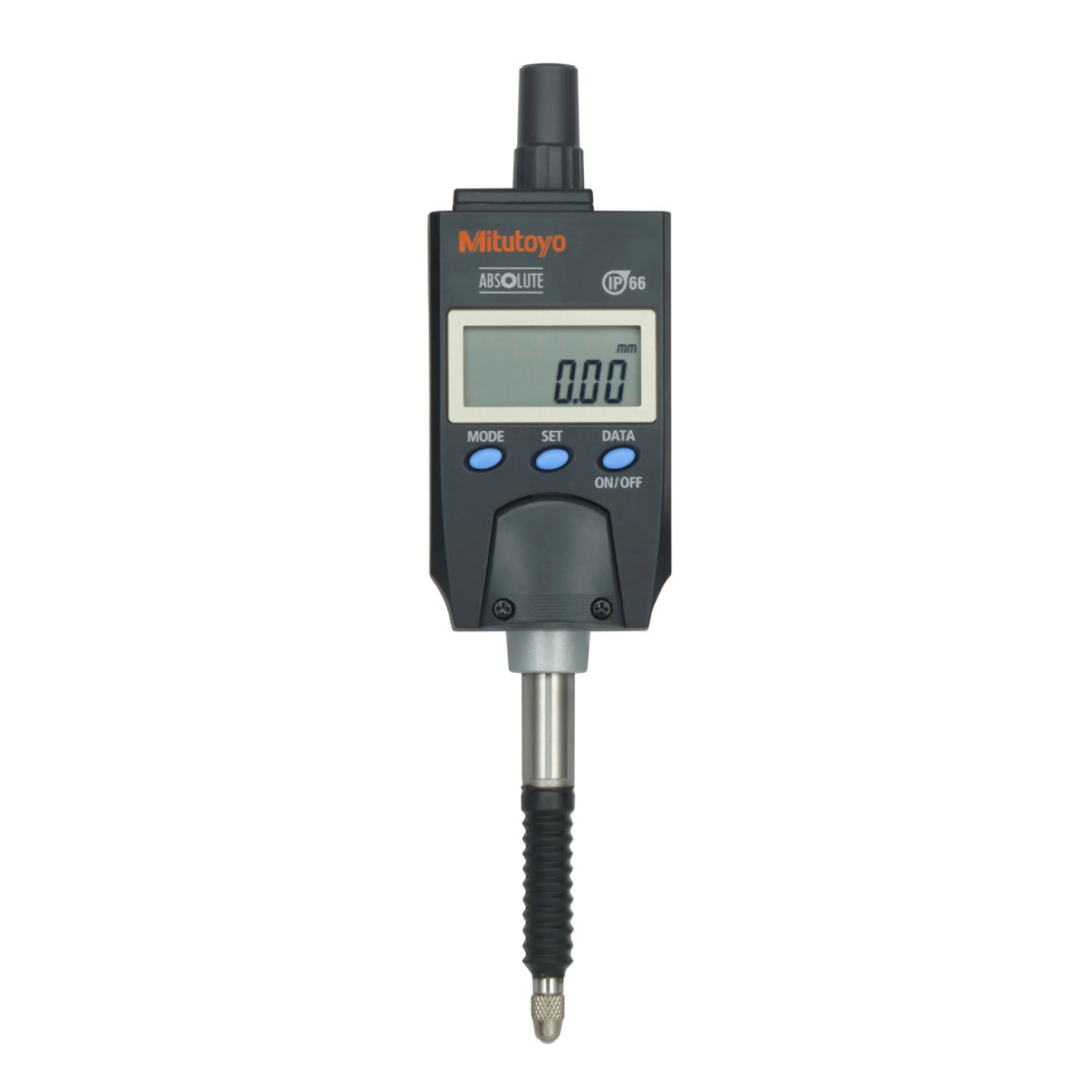

Model #: 543-575-10
MADE IN JAPAN
