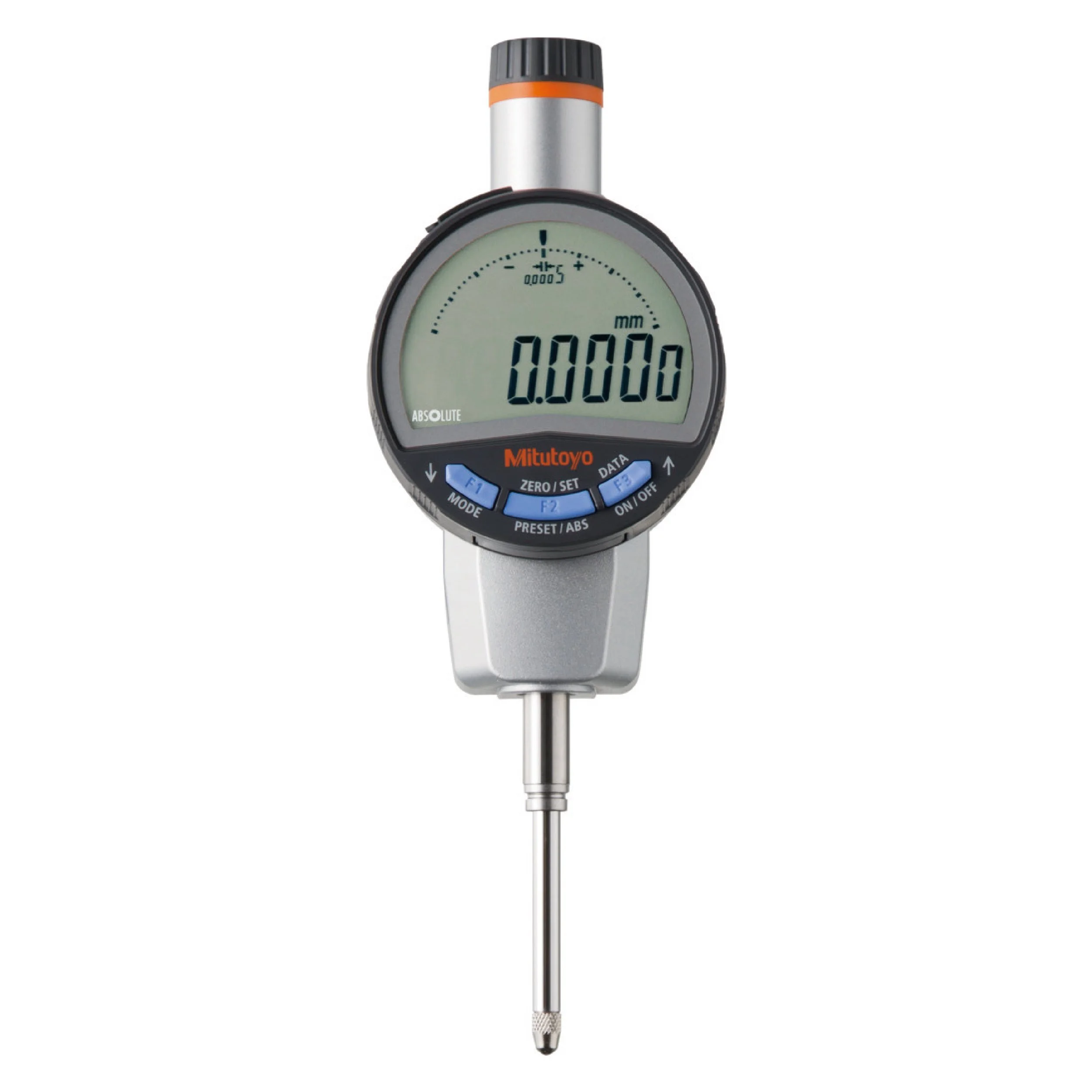

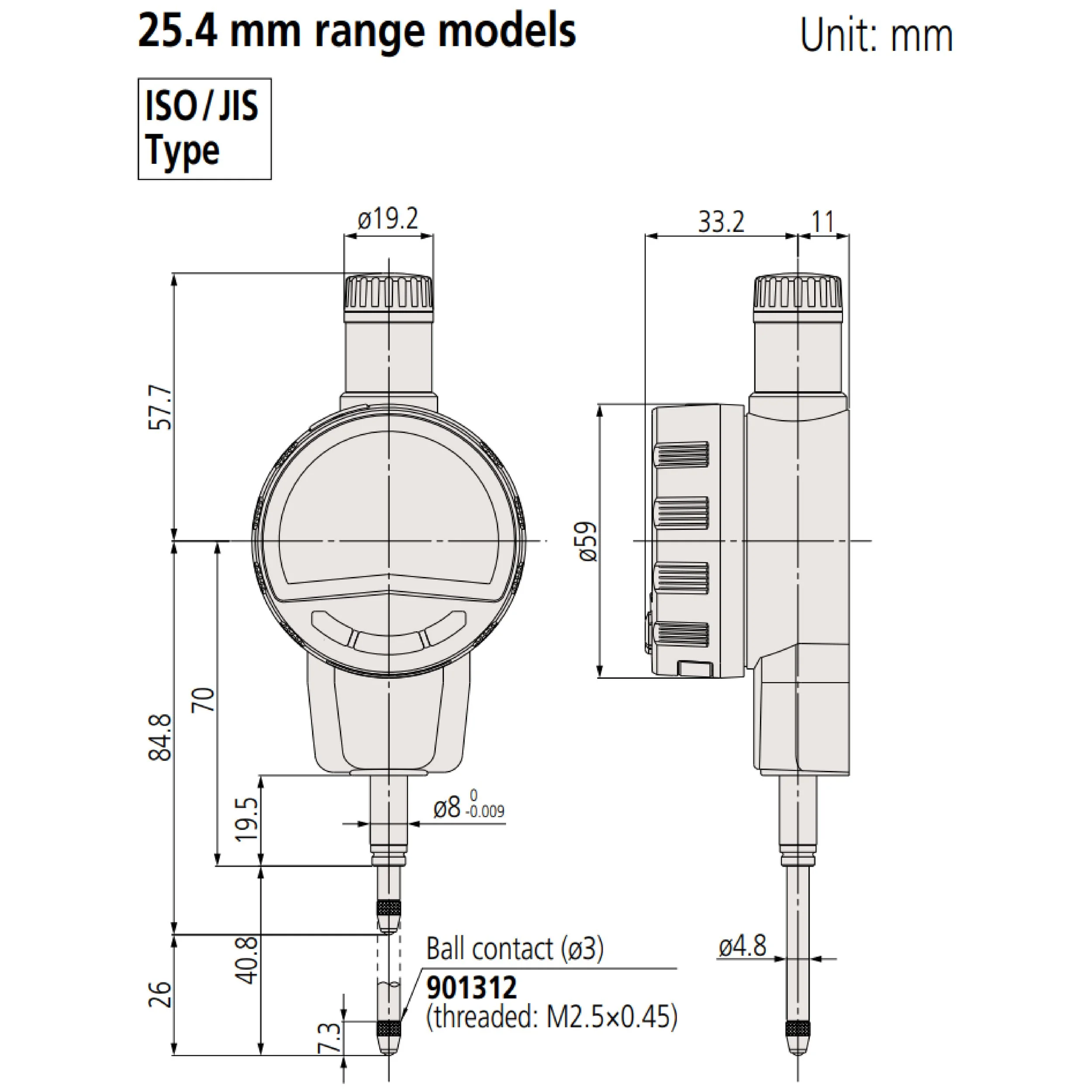

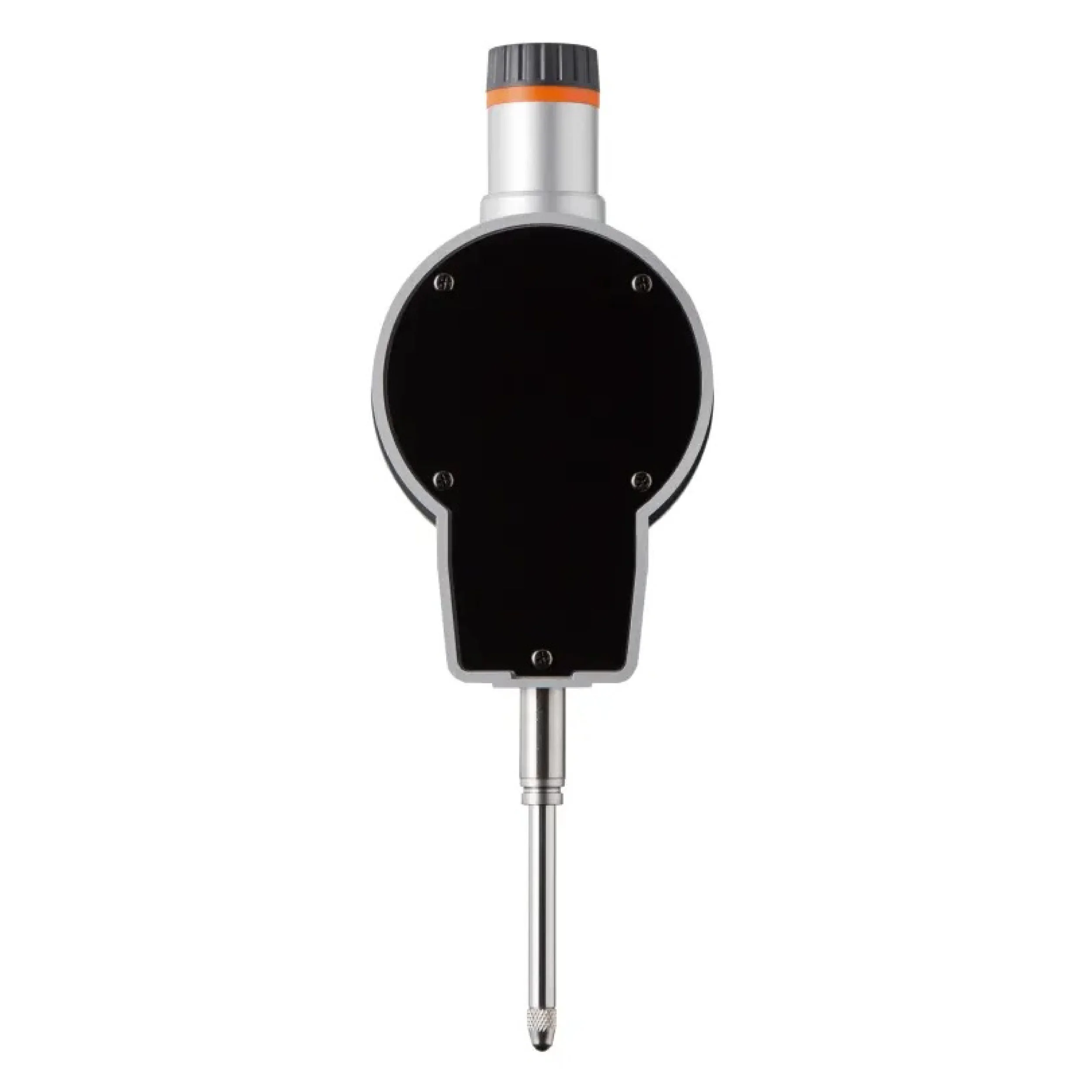

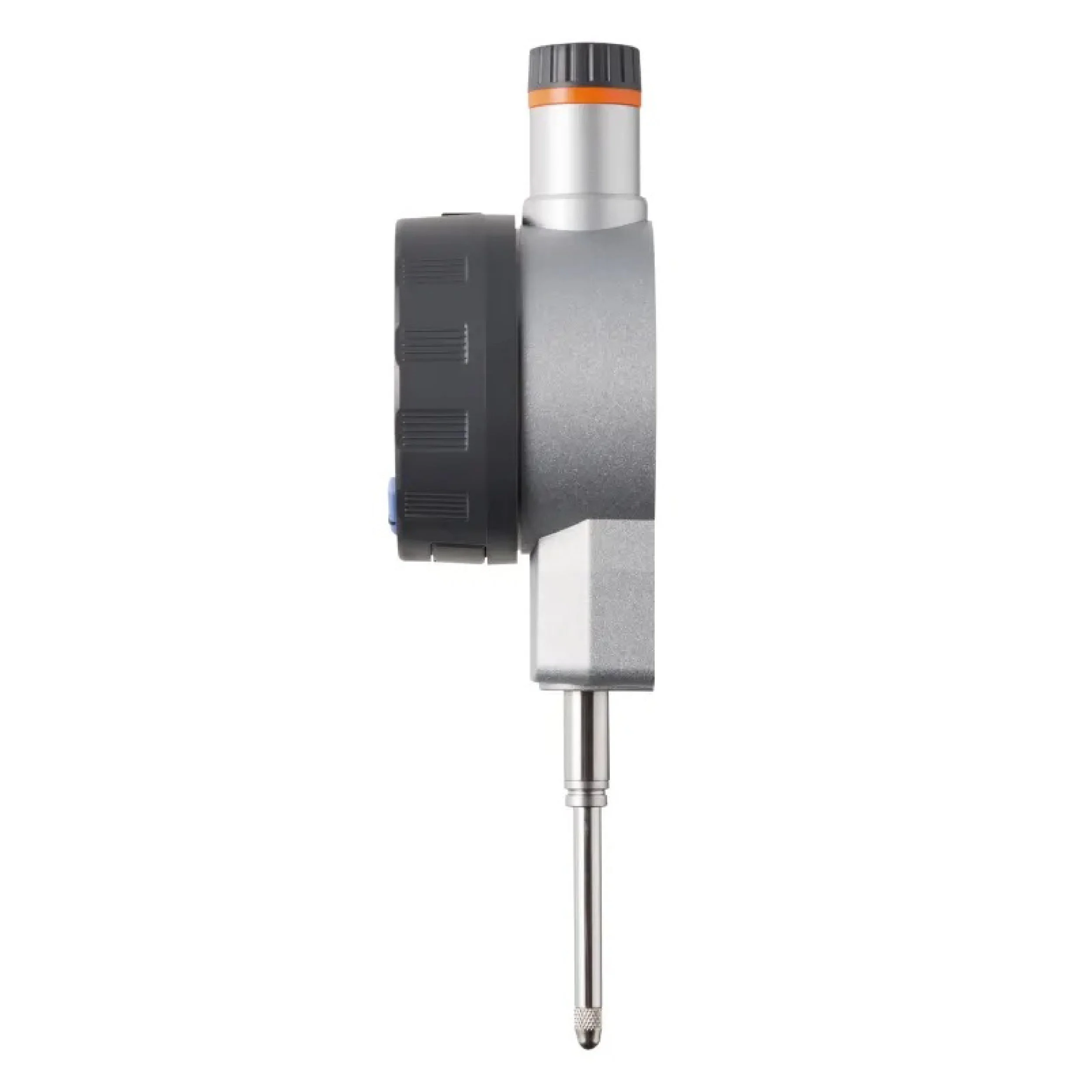

Mitutoyo ABSOLUTE Digimatic Indicator ID-CNX SERIES 543
• ID-C Series is a next-generation indicator with many new functions, including bidirectional communication support. With the addition of the appropriate data cable and software, remote zero setting and gauge setting can all be implemented from a connected PC, thereby improving your work efficiency.
• The digital display and analogue bar indications help you to intuitively read the approach to the origin and tolerance values.
• The next calibration due date can be set with an alarm to improve instrument management.
• The ABS (ABSOLUTE) scale restores the last origin position automatically when the indicator is turned on, and realizes high reliability by eliminating over-speed errors.
• Equipped with a data output port that enables incorporation into measurement networking and statistical process control systems.
Specifications:
Digital/Analog: Digital
Inch-Metric: Metric
Range: 0 - 25.4 mm
Resolution (mm): 0.0005 / 0.001 / 0.01 mm (selectable)
Max. Permissible Error P MPE (Partial Range): 0.003 mm
Max. Permissible Error E MPE (Total Range): 0.003 mm
H MPE (Hysteresis): 0.002 mm
R MPE (Repeatability): 0.002 mm
Measuring force (N): 1.8 or less
Max. response speed: Unlimited
Measurement frequency (MAX/MIN/RANGE): 50 times/s
Protection: IP42
Display: LCD, character height 11 mm, 330° rotatable
Stem ∅: 8 mm
Contact point: Carbide ball, thread: M2.5x0.45
Power supply: 1 battery CR2032
Battery life: Approx. 2700 hours (continuous use)
Functions:
• Peak detection (MAX/MIN)
• Runout range measurement (MAX - MIN)
• Zero-setting (INC system)
• Presetting (ABS system)
• Measuring direction switching
• Tolerance judgment
• Resolution switching
• Simple calculation: f(x) =Ax
• Function Lock
• Calibration schedule warning
• Auto power OFF
• Data output
• Display value holding (when no external device is connected)
• 330° rotary display
• Low battery/voltage alarm display
• Error alarm display
Model #: 543-720B
MADE IN JAPAN
———————————————————————————————————

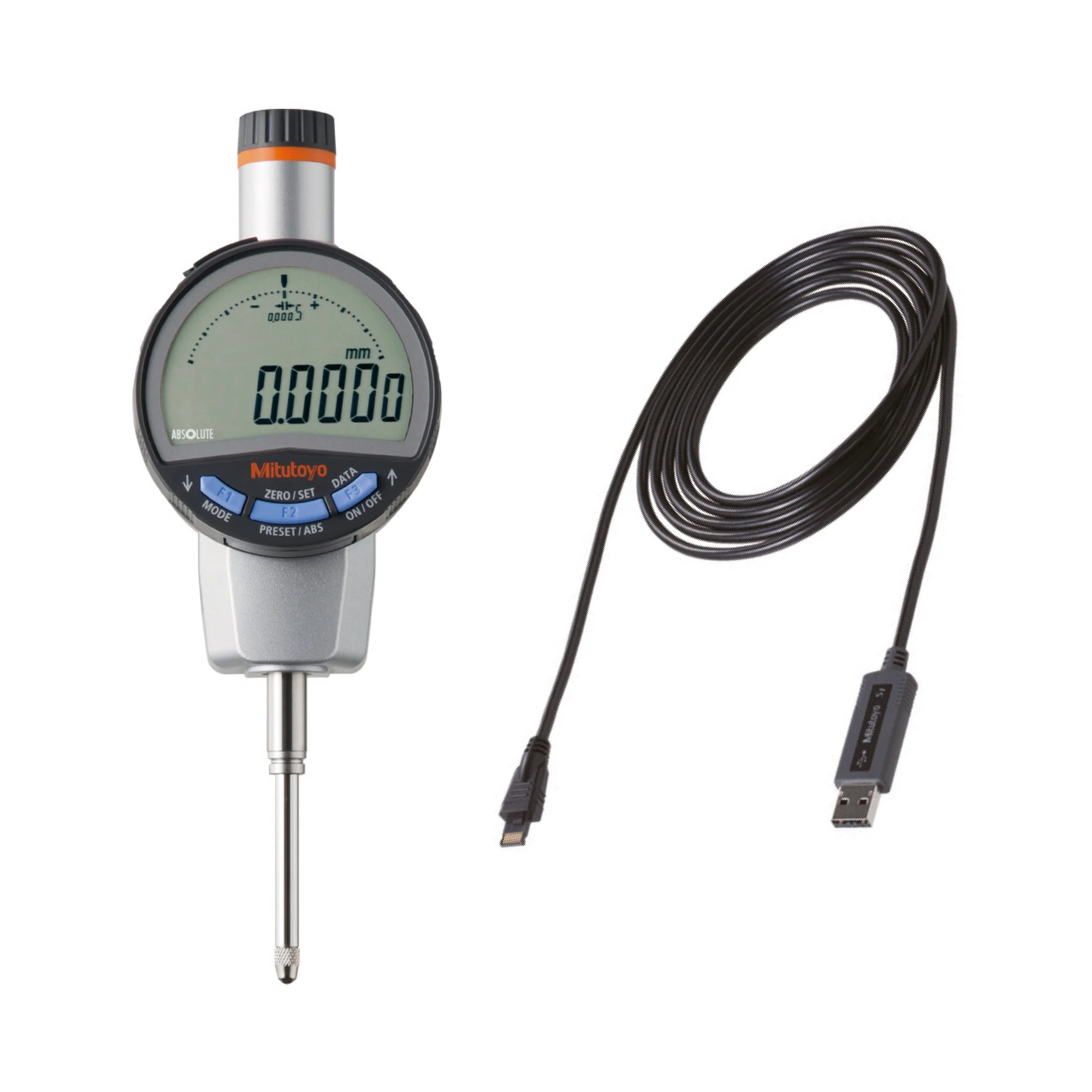

Mitutoyo Digimatic USB Input Tool Direct
Measurement data can be entered into Excel, Notepad, etc. simply by connecting to a PC.
The combination of simple operability (HID) and optional software for Excel input enables one step higher work efficiency.
Technical Data:
Cable length: 2 m
Model: USB Input Tool Direct (Straight standard type)
Communication speed (Mbps): 12
Output specification: USB (1 channel)
USB 2.0 certified: Correspondence
Power supply: USB bus power
Output: USB HID (keyboard format) or VCP (Virtual COM-Port)
Remarks: USB Input Tool Direct Cable for measuring tools with Digimatic S1 bidirectional interface
Software: Programs that allow keyboard input (Excel, Word, Notepad, etc.)
OS compatibility: Windows® 10 (64 bit) / Windows® 11 (64 bit)
Max connectable devices: Up to 20
Mass: 62 g
*Since this device is compatible with Windows standard driver software, dedicated driver software is not required.*
Model #: 06AGQ001F
MADE IN JAPAN
