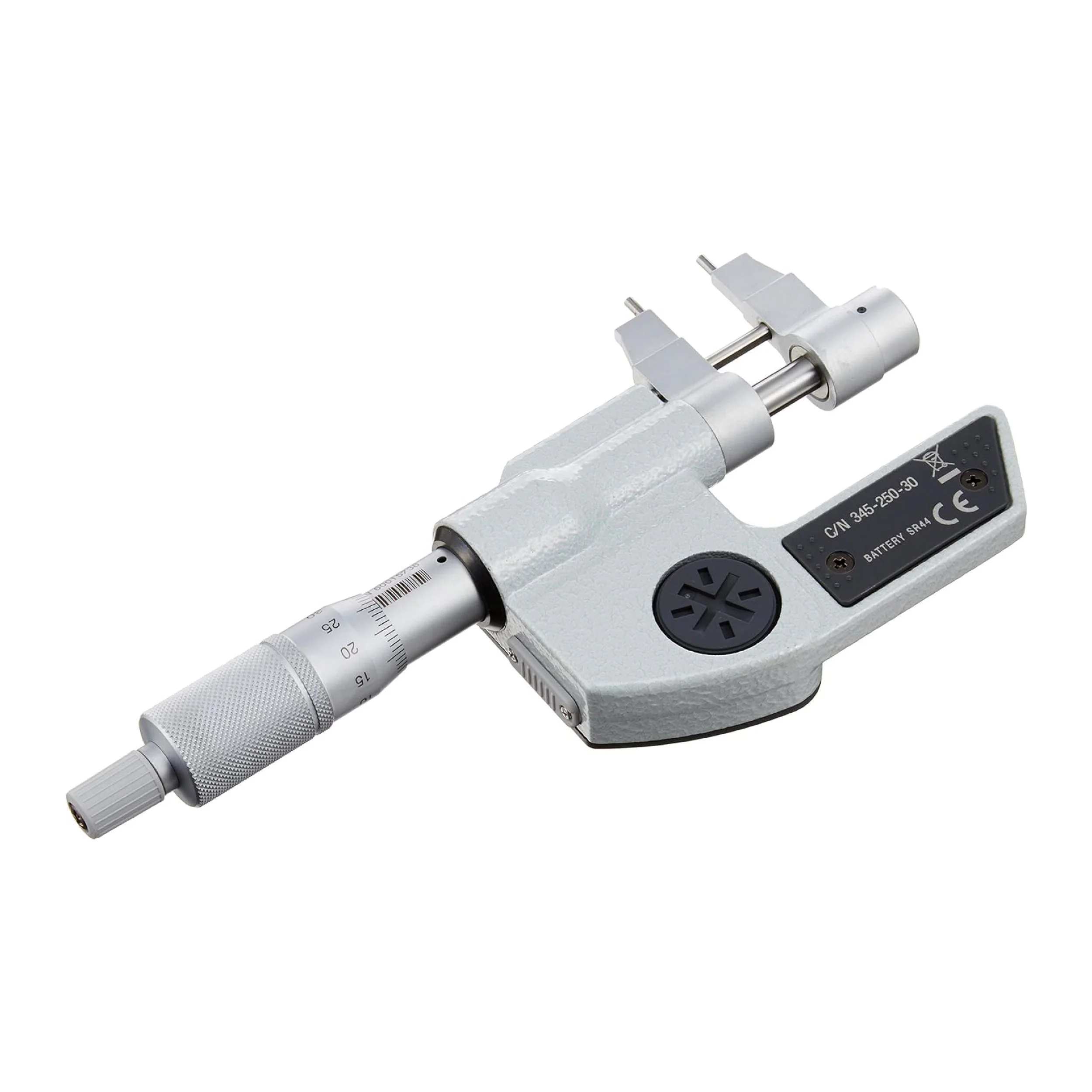

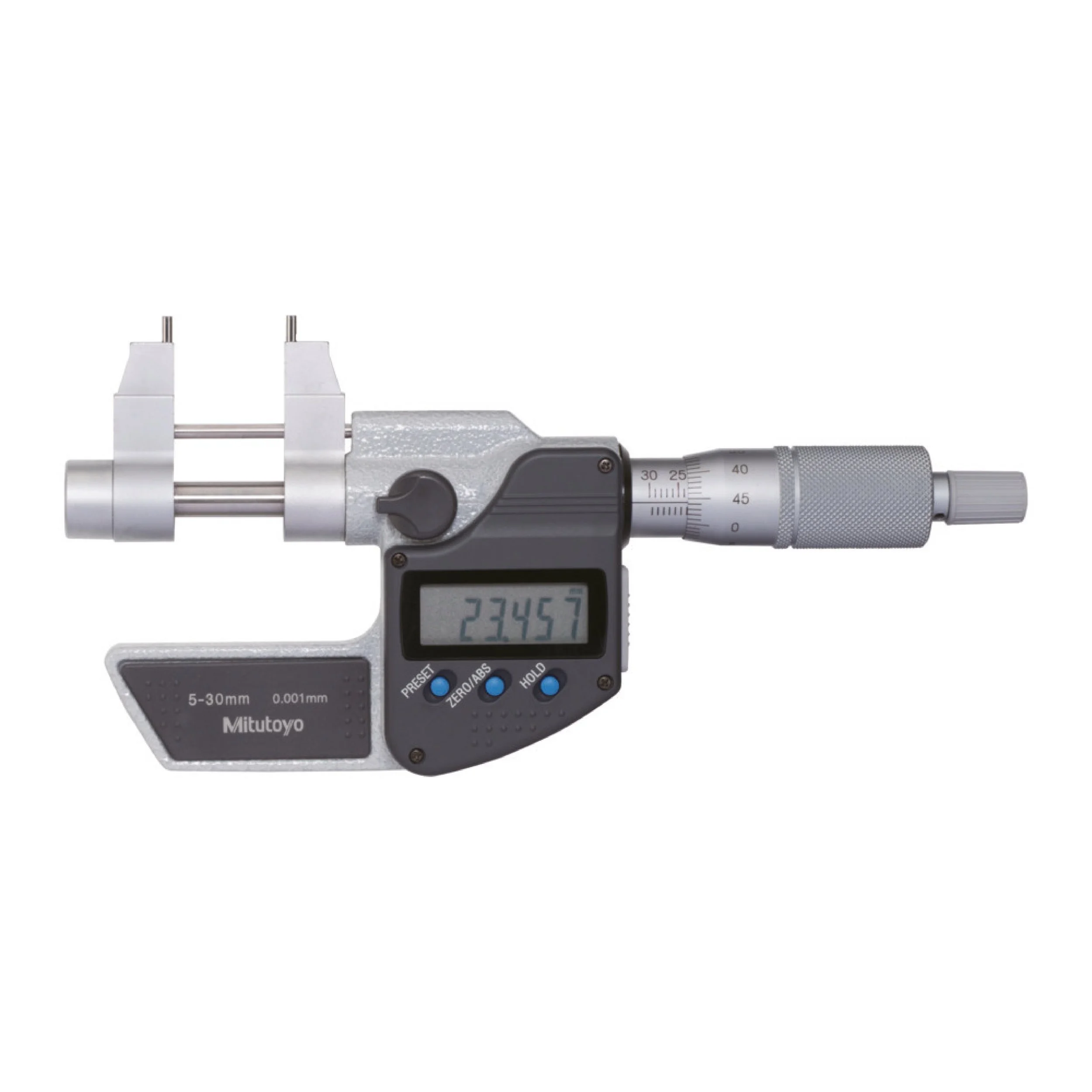

Inside Micrometers SERIES 345 — Caliper Type
Useful for measuring workpieces with grooves that cannot be measured by a two-point or three-point inside micrometer.
Carbide-tipped measuring faces.
Equipped with a constant measuring-force device.
Technical Data:
Digital/Analog: Digital
Inch-Metric: Metric
Range: 5 - 30 mm
Resolution: 0.001 mm
Maximum Permissible Error J MPE: ±5 µm
Jaw: Pin
Display: LCD, character height 7.5 mm
Measuring face: Carbide tipped
Measuring spindle: With spindle lock, spindle pitch 0.5 mm
Scale: Thimble and sleeve satin chrome finish, ø18 mm
Measuring force: 1 - 6 N
Power supply: 1 battery SR-44
Battery life: Approx. 2-4 years
ABS / INC (INC ZERO): Yes
Auto Power OFF after 20 min. non use: Yes
2 x PRESET: Yes
Function lock: Yes
HOLD: Yes
Data output: Yes
Low voltage alarm: Yes
Mass: 320 g
Model #: 345-250-30 (metric only)
MADE IN JAPAN
