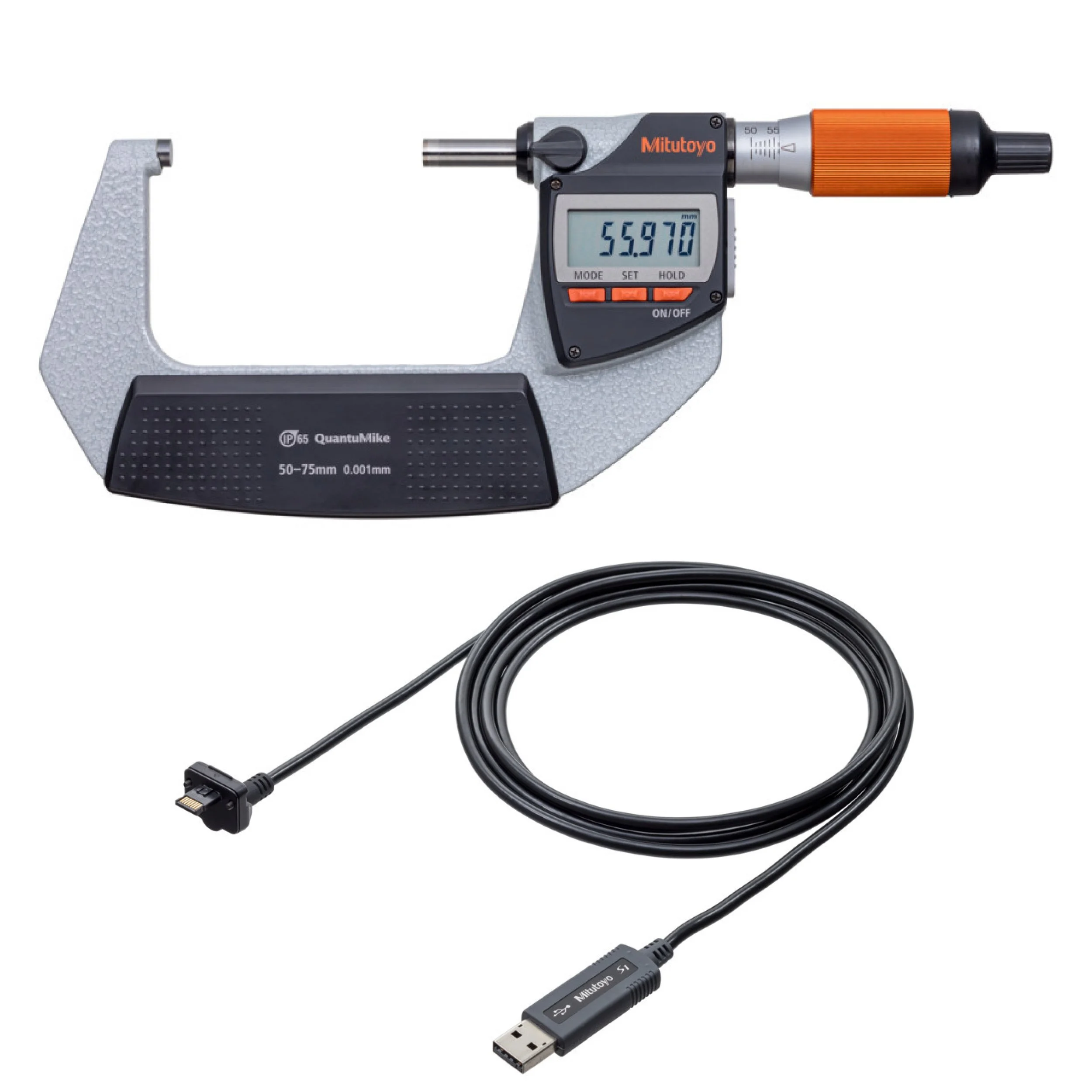

The spindle moves four times faster than that of the standard micrometer, enabling faster, easier measurement even when it is repeated many times over.
The approach speed warning function can detect collision with a workpiece at excessive speed, helping inexperienced users obtain reliable and accurate measurement results.
The calculation function can calculate offsets added to measurement results before they are passed to a machine. This eliminates errors and the effort needed for calculation, helping reduce the number of rejected machined items.
The Calibration alert function helps with effective measuring instrument management.
The ratchet thimble mechanism helps ensure repeatable results by transmitting microvibrations along the spindle to the contact face to provide a constant measuring force and encourage good contact with the workpiece. The ratchet works from the thimble as well as the speeder so it is always easy to use – even when making measurements one-handed. The sound of the ratchet provides the user with a sense of confidence and the speeder enables the rapid spindle feed needed when measuring widely different dimensions.
Excellent resistance against water and dust (IP65 protection level) enables this micrometer to be used in machining situations that include splashing coolant fluid.
Bidirectional serial communication supported.
Technical Data:
Digital/Analog: Digital
Inch-Metric: Metric
Range: 50 - 75 mm
Resolution: 0.001 mm
Maximum Permissible Error J MPE: ±2 µm
Flatness: 0.3 µm
Parallelism: 2 µm
Display: LCD, character height 7.5 mm
Measuring face: Carbide-tipped, micro-lap finish
Measuring spindle: With spindle lock, ø6.35 mm, spindle pitch 2 mm
Scale: Thimble and sleeve satin chrome finish, ø19.3 mm
Measuring force: 7 - 12 N
Power supply: 1 battery CR2032
Battery life: Approx. 2-4 years
ABS / INC (INC ZERO): Yes
Auto Power OFF after 20 min. non use: Yes
Calculation function (with formula): Yes
Calibration warning function: Yes
Customizing keys: Yes
Data output: Yes, Digimatic S1
Function lock: Yes
GO/±NG judgement: Yes
HOLD: Yes
PRESET: Yes
Mass: 465 g
Model #: 293-142-40 (metric only)
MADE IN JAPAN
———————————————————————————————————

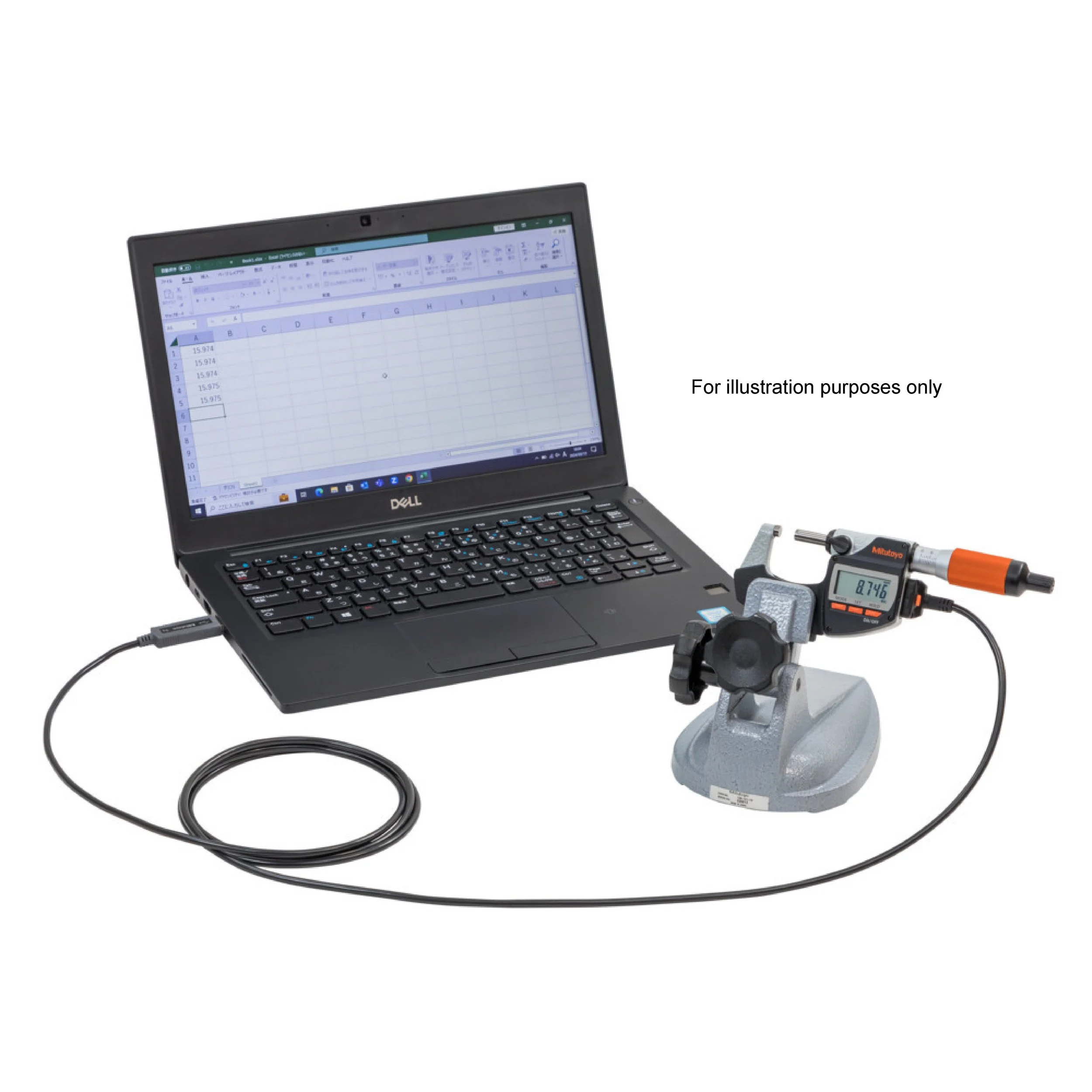

Measurement data can be entered into Excel, Notepad, etc. simply by connecting to a PC.
The combination of simple operability (HID) and optional software for Excel input enables one step higher work efficiency.

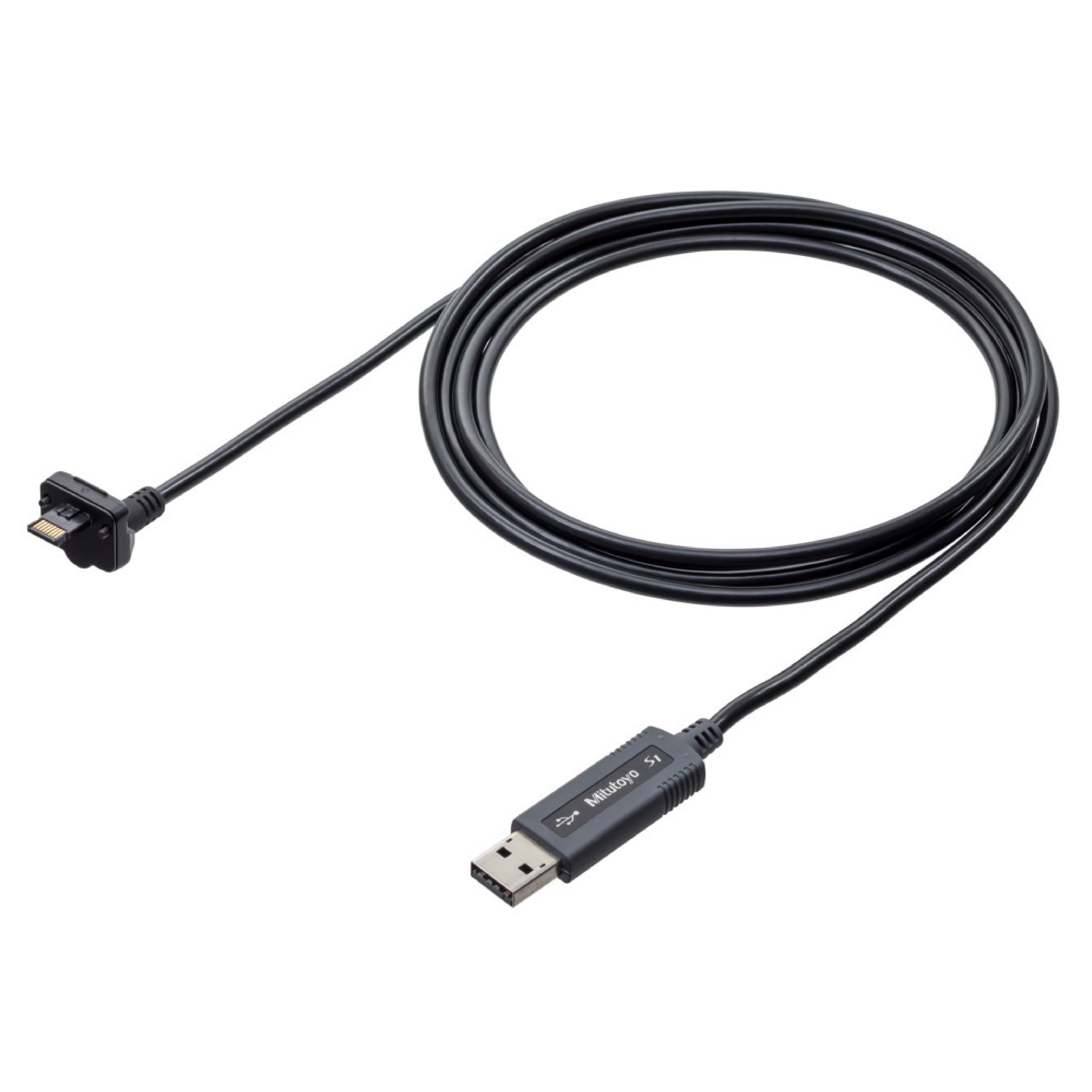

Technical Data:
Cable length: 2 m
Model: USB Input Tool Direct (Straight waterproof type with output switch)
Communication speed (Mbps): 12
Output specification: USB (1 channel)
USB 2.0 certified: Correspondence
Power supply: USB bus power
Output: USB HID (keyboard format) or VCP (Virtual COM-Port)
Remarks: USB Input Tool Direct Cable for measuring tools with Digimatic S1 bidirectional interface
Software: Programs that allow keyboard input (Excel, Word, Notepad, etc.)
OS compatibility: Windows® 10 (64 bit) / Windows® 11 (64 bit)
Max connectable devices: Up to 20
Mass: 62 g
*Since this device is compatible with Windows standard driver software, dedicated driver software is not required.*
Model #: 06AGQ001A
MADE IN JAPAN
