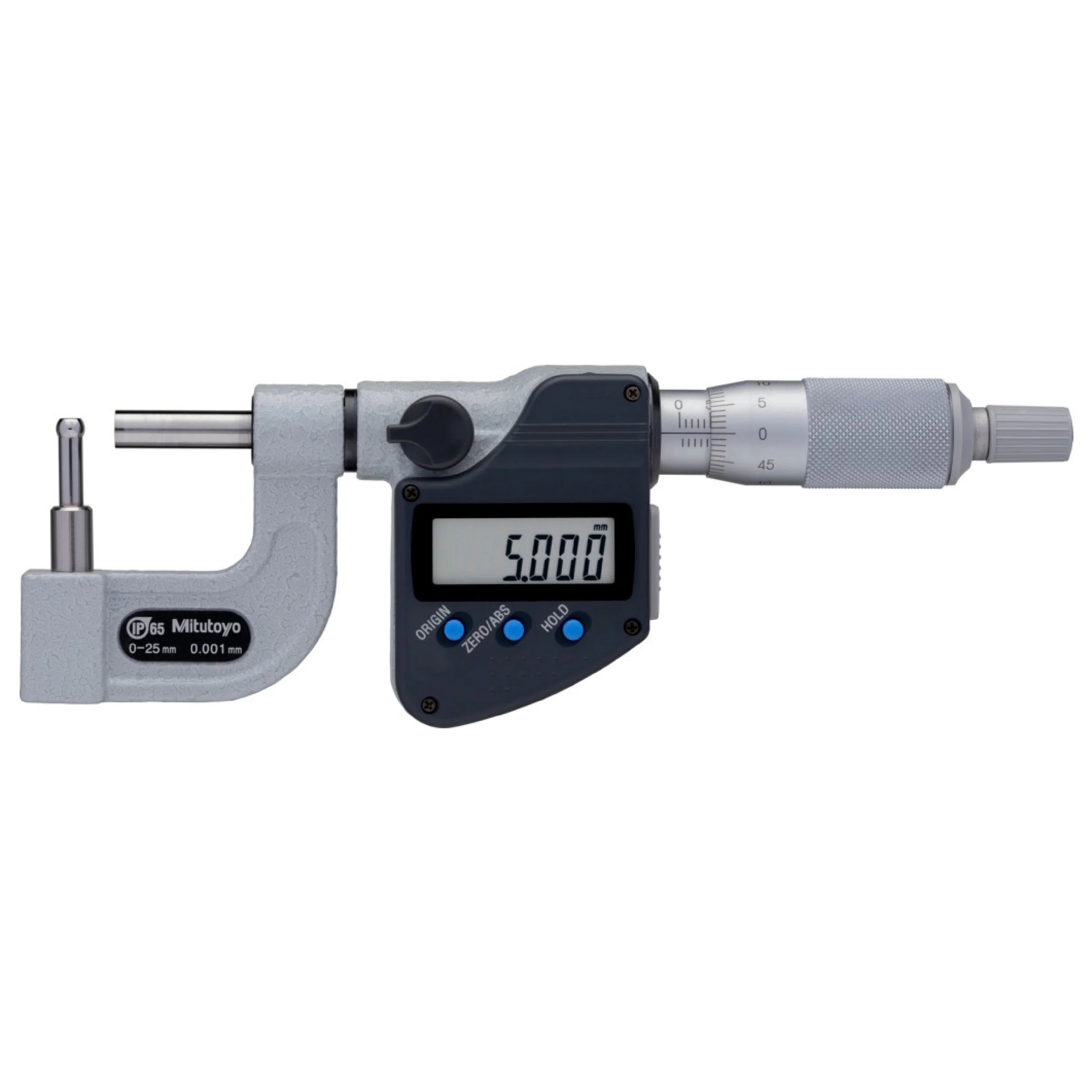

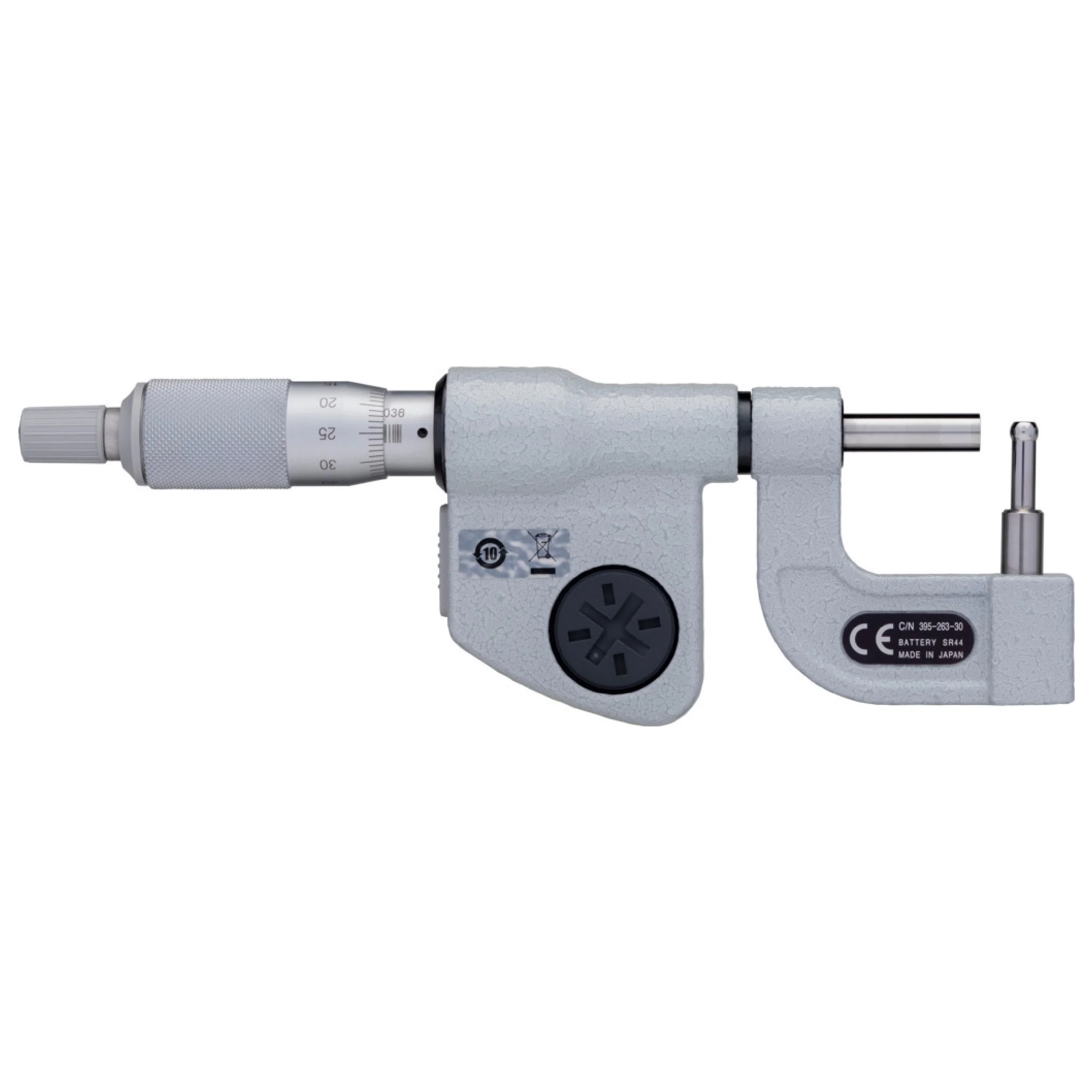

This Digimatic Tube Micrometer allows you to measure curved surfaces such as the wall thickness of tubes, bearings and rings. Spherical and cylindrical anvil type.
Series 395: IP65 spherical and cylindrical anvil type digital micrometers.
Equipped with Ratchet Stop for constant measuring force.
Spindle face: Carbide.
Technical Data:
Digital/Analog: Digital
Inch-Metric: Metric
Range: 0 - 25 mm
Digital step: 0.001 mm
Maximum Permissible Error J MPE: ±3 µm
Accuracy: ±3 µm
Flatness: 0.3 µm
Position detection method: Electromagnetic induction rotary encoder
Display: LCD, character height 7.5 mm

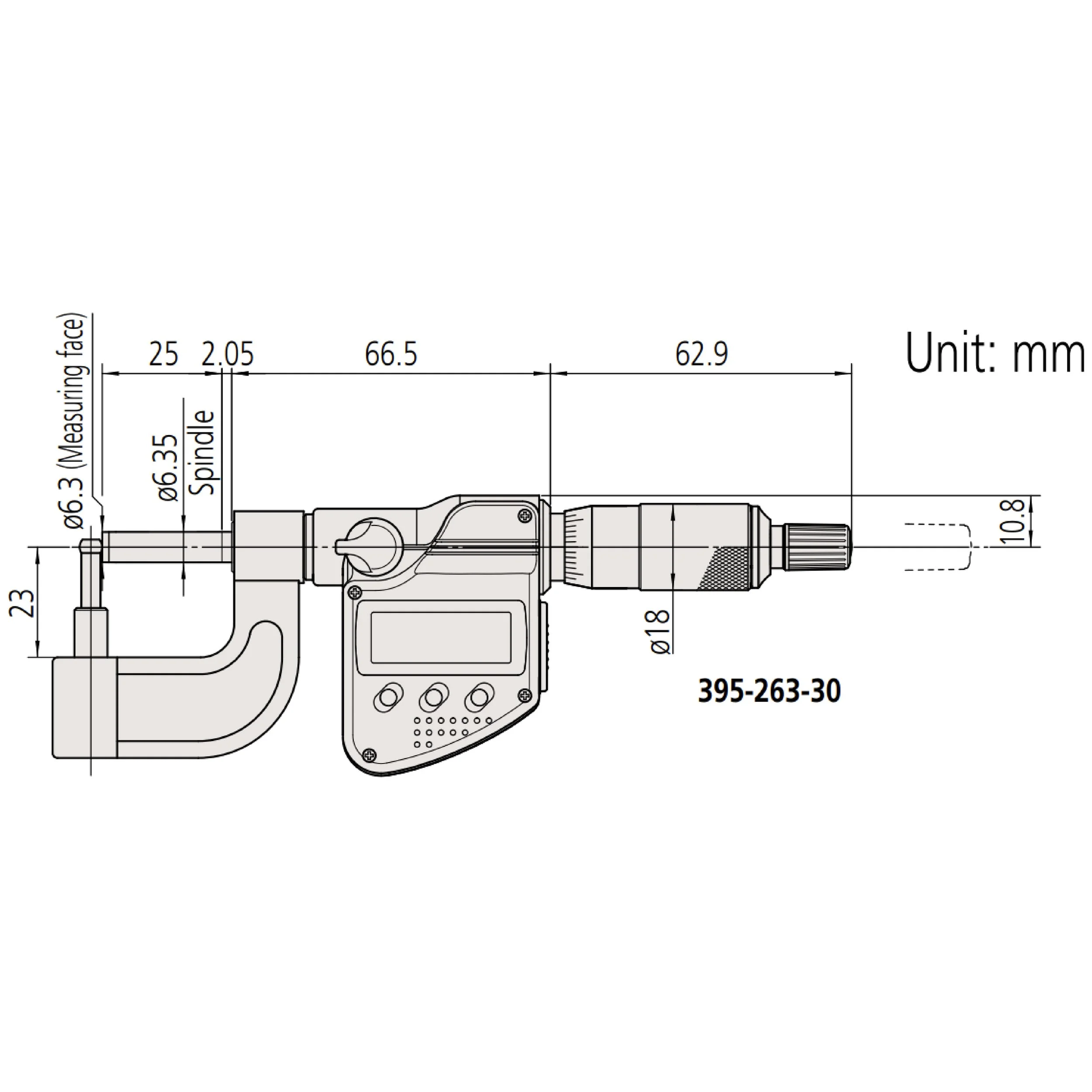

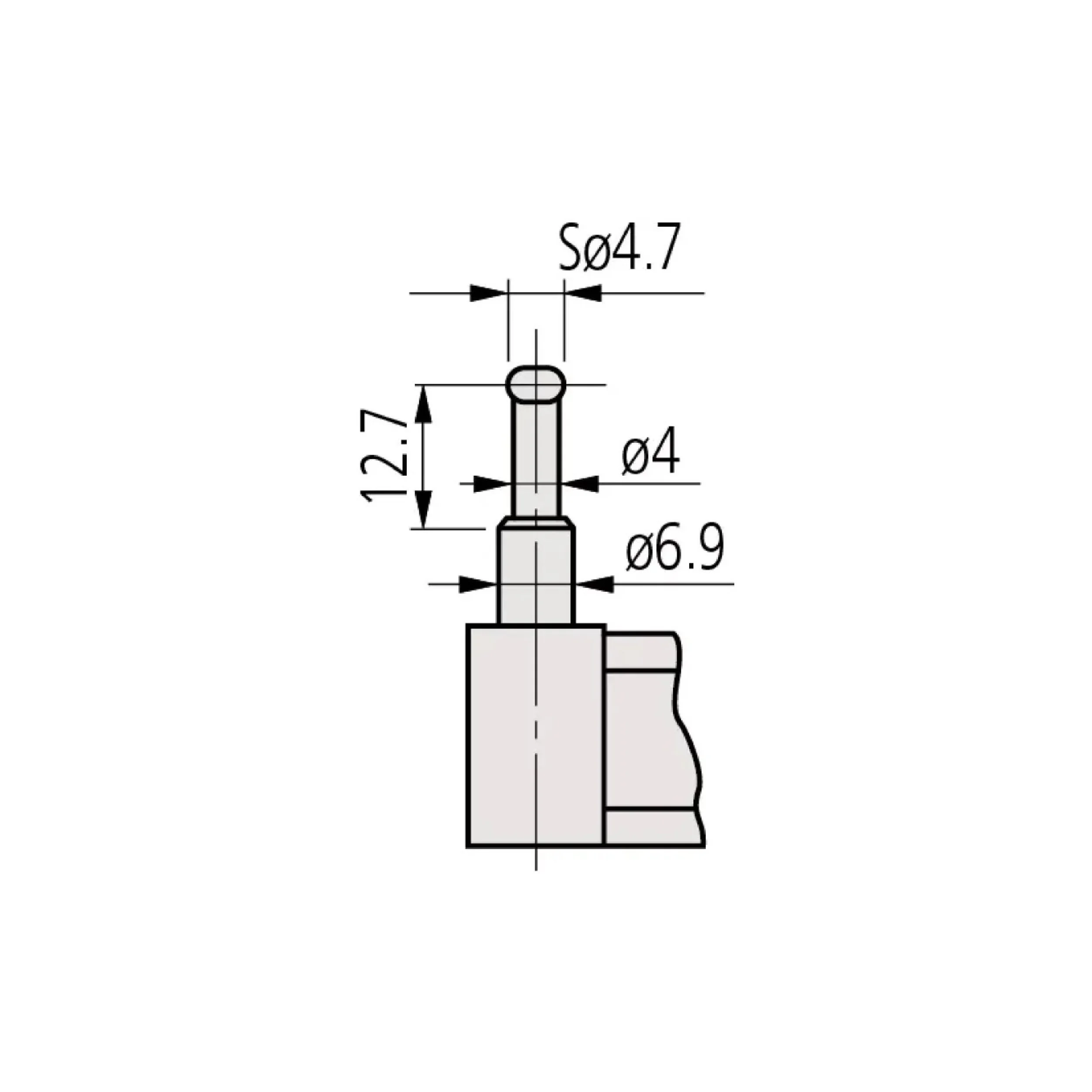

Anvil / Spindle: Type C, spherical pin D=4.7 mm/flat spindle
Measuring spindle: With spindle lock, ø6.35 mm, spindle pitch 0.5 mm
Scale: Thimble and sleeve satin chrome finish, ø18 mm
Measuring force: 3 - 8 N
Power supply: 1 battery SR-44
Battery life: Approx. 2-4 years

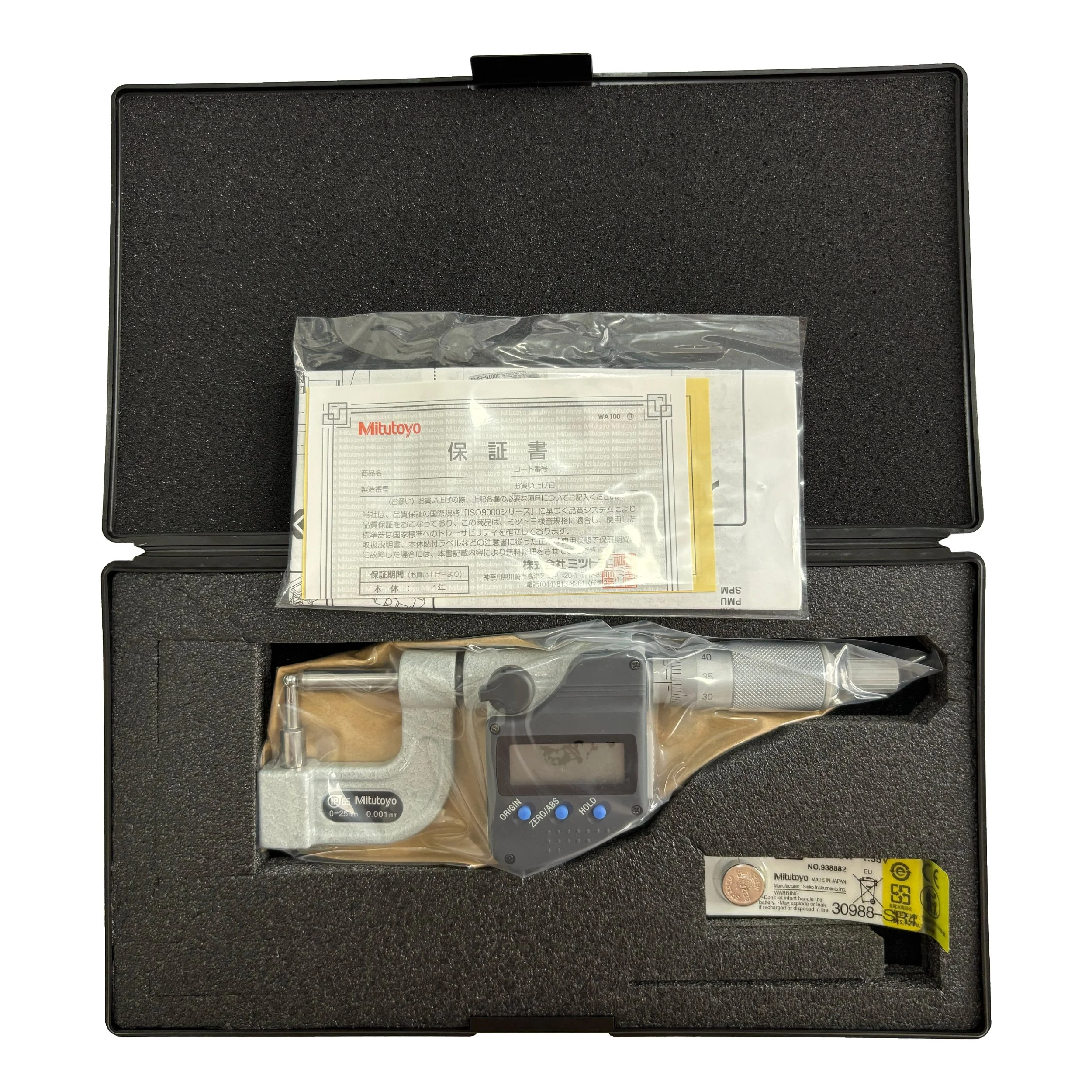

Delivered: Including box, setting standard (from 25 mm upward), key, 1 battery
ABS / INC (INC ZERO): Yes
Auto Power OFF after 20 min. non use: Yes
Function lock: Yes
HOLD: Yes
Mass: 310 g
Model #: 395-263-30 (metric only)
MADE IN JAPAN
