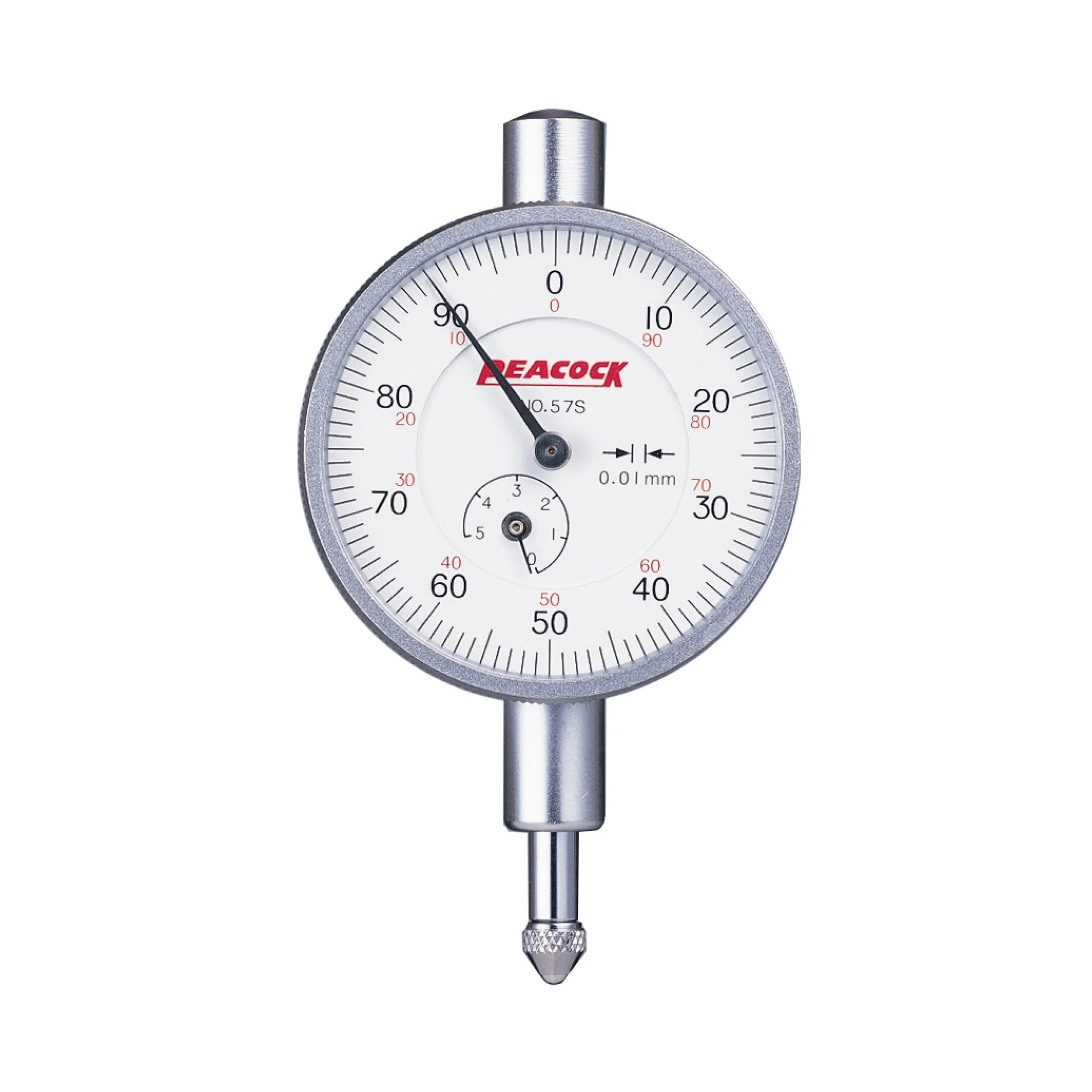

PEACOCK Miniature Dial Indicator Lug Back Jeweled Bearing 5mm Range | 0.01mm Graduation

Since 1916, PEACOCK Measuring Instruments is recognised for its accuracy, durability, and reliability, making it a trusted choice for professionals and hobbyists alike.

• These compact size dial gauge are equipped with small dial faces. They are especially useful for measuring jigs in restricted areas.

• Jeweled bearing is installed to our general Dial Gauges.

Technical Data:

Digital/Analog: Analog

Inch-Metric: Metric

Range: 5 mm

Graduation: 0.01 mm

Reading: ±0-50-100

Indication error (MPE) 1/10 revolution: 8 µm

Indication error (MPE) 1/2 revolution: 12 µm

Indication error (MPE) 1 revolution: 14 µm

Indication error (MPE) Whole measuring range: 18 µm

Hysteresis error: 4 µm

Repeatability: 3 µm

Measuring force less than (N): 1.4

Continuous dial: Yes

Compact Type: Yes

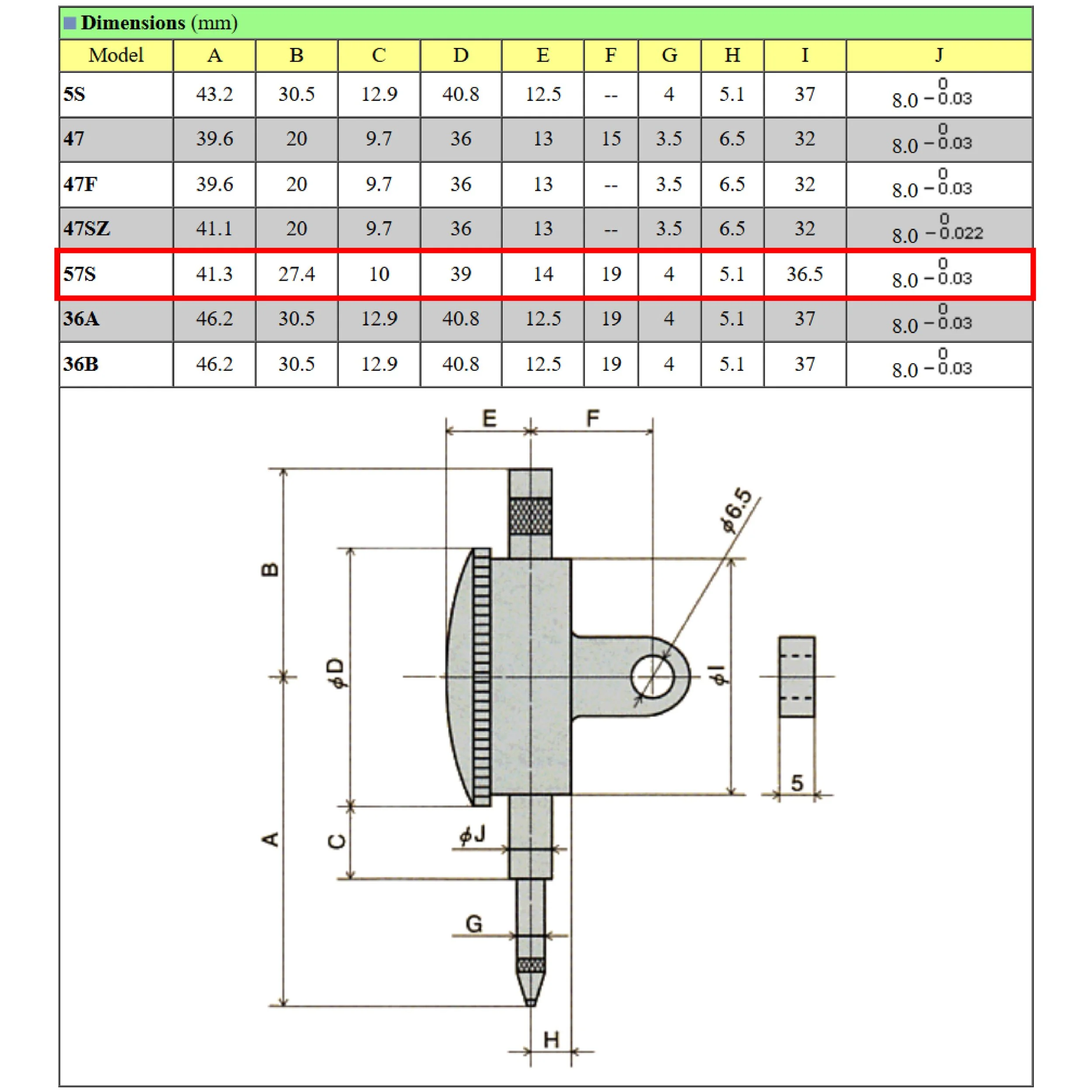

Dial size: Ø39 mm

Model#: 57S

MADE IN JAPAN
