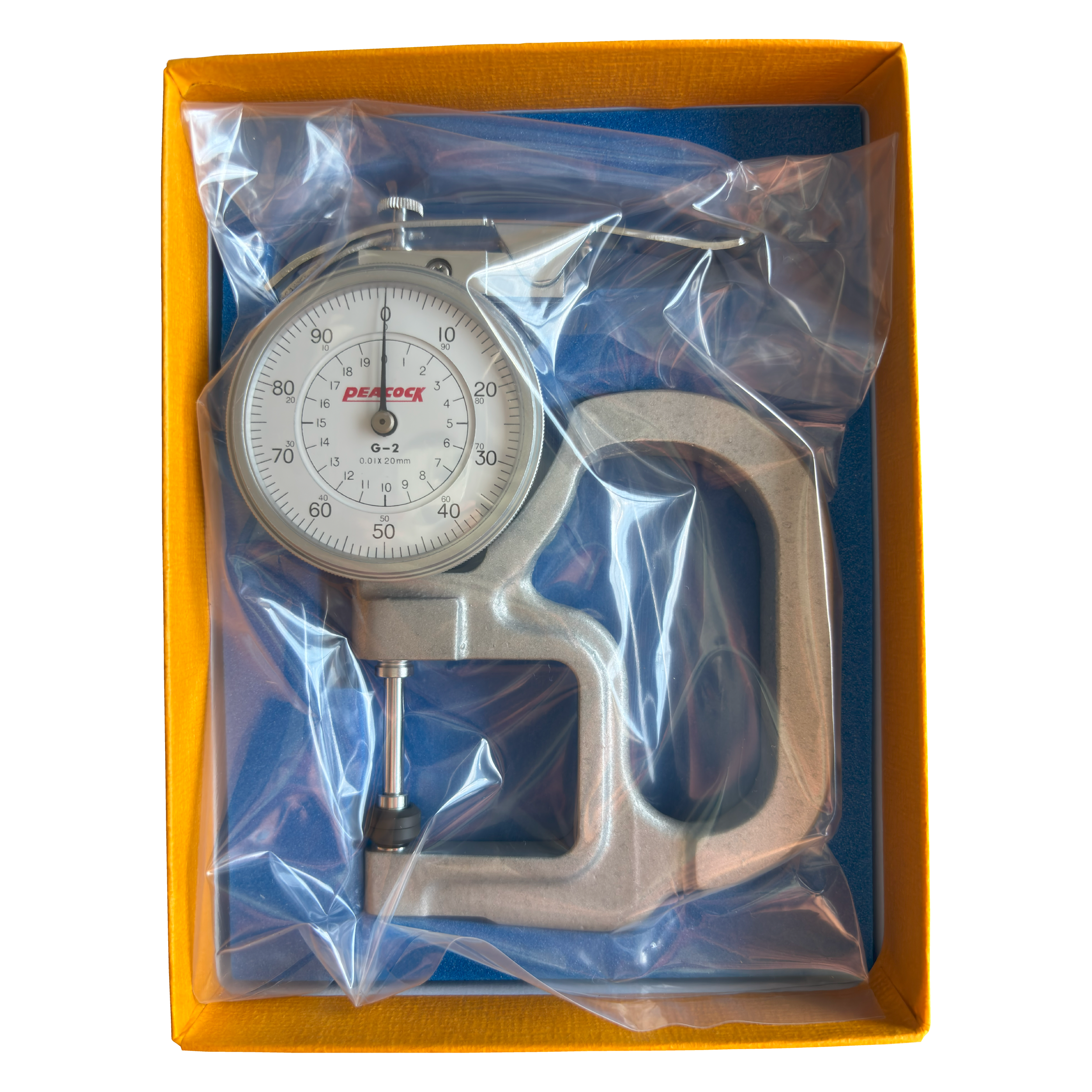

PEACOCK Dial Thickness Gauge 0-20mm Range | 0.01mm Graduation
Since 1916, PEACOCK Measuring Instruments is recognised for its accuracy, durability, and reliability, making it a trusted choice for professionals and hobbyists alike.
These thickness gauges are especially handy for measuring thickness of small parts, metal, rubber, vinyl, paper, foil and other sheet material.
The objects to be measured is clamped by simple lever operation.
Since the anvil and the contact point are adjusted for parallelism, accurate measured values are obtained.
Technical Data:
Digital/Analog: Analog
Inch-Metric: Metric
Range: 0 - 20 mm
Graduation: 0.01 mm
Reading: ±0-100
Accuracy: ±22 µm
Contact Point Parallelism: ±5 µm
Contact Point Ø: 10 mm
Contact Point: Ceramic Flat Anvil
Throat depth: 33 mm
Measuring force less than (N): 2.0
Model#: G-2
MADE IN JAPAN
