These thickness gauges are especially handy for measuring thickness of small parts, metal, rubber, vinyl, paper, foil and other sheet material.
New thickness gauges with 0.001 graduations.
Newly developed special frame minimises inspecting errors resulting from thermal changes. Zero reference point will remain accurate even after many hours of use or extreme swings in temperature. (G-6C, G-7C)
The objects to be measured is clamped by simple lever operation.
Since the anvil and the contact point are adjusted for parallelism, accurate measured values are obtained.
Technical Data:
Digital/Analog: Analog
Inch-Metric: Metric
Range: 0 - 5 mm
Graduation: 0.001 mm
Reading: 0-100-0
Accuracy: ±10 µm
Contact Point Parallelism: ±3 µm
Contact Point Ø: 5 mm
Contact Point: Metal Flat Anvil
Throat depth: 20 mm
Measuring force less than (N): 1.8
Shock Proof: Yes

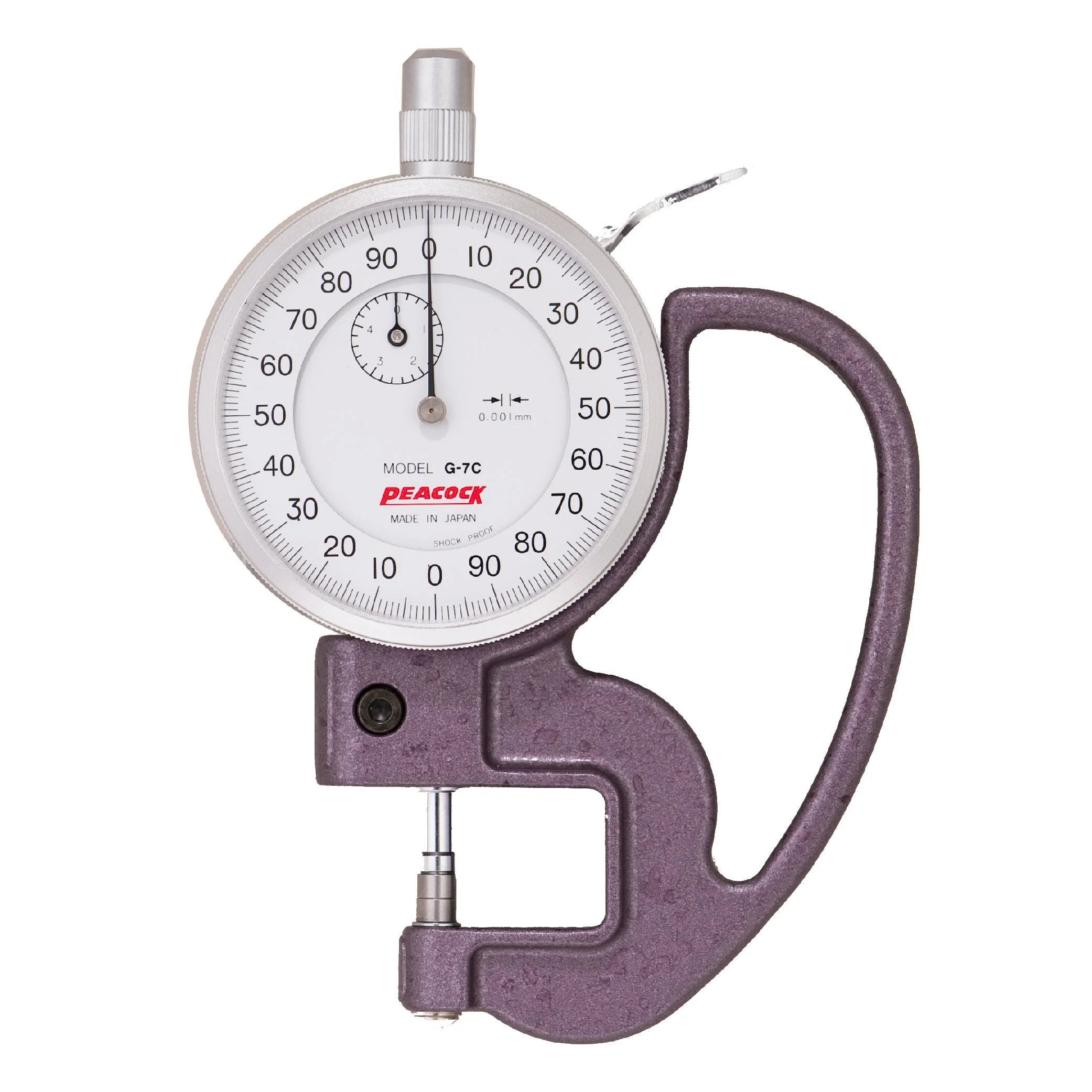

Model#: G-7C
MADE IN JAPAN
